A27 - Turbo charger circuit

The full chapter is not available.

However, you can choose retail parts.

A27 - Turbo charger circuit

€9,287.65
Pack content
Ref Name Qty Price Number
  1 n Turbo T91 orienté plombé
904297778A
1 €2,952.63

  2 O-ring seal ø42x2 fkm 80sh
PS77816A10
1 €1.68

  3 Turbocharger rod
904297838A
2 €7.35

  4 Socket Screw M6-35 12.9
PS82038A10
1 €0.42

  5 Screw M6-18 12.9
PS82057A10
1 €0.26

  6 Flat washer ø6x14-1,5
6949-04
2 €0.01

  7 LINK ROD TURBO
904496348A
1 €51.32

  8 Turbocharger rod mount
904297848A
1 €79.96

  9 Socket Screw M8x125-25 12.9
PS82091A10
1 €0.20

  10 Flat washer ø8x16-2
6947-22
1 €0.58

  11 Chc screw m6x100 l60 cl12.9
CS530089ST
1 €1.00

  12 Collar Nut M6
6936A0
1 €0.48

  13 Turbocharger Elbow
904433238F
1 €1,080.00

  14 Turbocharger seal / exhaust manifold
9805985580
1 €213.52

  15 V-Band collar
9808463780
2 €61.50

  16 Threaded collar screw
9808224580
2 €22.09

  17 Washer
9810678980
2 €2.19

  18 Collar nut M8
1718-43
2 €0.44

  19 Intake Restrictor Ø42
904400668A
1 €182.95

  20 O-ring seal ø56x2 viton 80sh
CS360270ST
1 €3.67

  21 Machined screw m6x14
0A2726518A
2 €12.96

  22 Turbocharger oil feeding pipe
904297738B
1 €137.49

  23 Thermal Protection Ø25 - L 400
653830
1 €58.21

  24 Adaptator M10x1/dash3 M/M
PS73035A10
1 €28.24

  25 Copper seal d10.2 D13.9 Th1
PS81031A10
2 €0.82

  26 Adaptor dash3 12x150 m/m
PS73310A10
1 €10.88

  27 Copper seal ø12.2x18x1
PS81562A10
1 €0.98

  28 Feeding pipe fixing bracket
904297768A
1 €39.85

  29 Norma collar ø8 l.15
PS91012A10
1 €1.68

  30 Socket Screw M6-15 12.9
PS82620A10
2 €0.31

  31 A type washer D6
PS86004A10
6 €2.64

  32 M6 H Nut
PS74040A10
1 €0.44

  33 Oil return pipe mounting plate
904297748B
1 €139.98

  34 Oil return pipe seal
0A2726865A
1 €21.01

  35 Socket Screw M6-16
691306
2 €2.07

  36 Oil return pipe
904297758A
1 €8.70

  37 Metal Collar D16-27 Th9
6981-H7
2 €1.62

  38 Waste Gate Solenoid Valve
1922V8
1 €87.20

  39 Connector protection
6545ZF
1 €6.86

  40 Waste Gate Solenoid Valve Mounting Brack
904443328B
1 €27.72

  41 SCREW M6x100 L20
CS530169ST
1 €0.31

  42 Washer 6x12-1.2
6947-77
1 €1.06

  43 Nut M6
PS74001A10
1 €2.22

  44 Vaccum pump - Solenoid valve pipe
904444528B
1 €56.78

  45 Solenoid valve - Waste gate pipe
904444538B
1 €54.16

  46 Hose ø5x3 l65
904444918B
2 €2.92

  47 Hose ø5x3 l40
904444928A
2 €4.36

  48 Hose ø4 ep3 l65
904449738A
2 €16.80

  49 Hose ø4 ep3 l40
904456028A
1 €11.16

  50 Metal collar ø11,5-7
PS91682A10
4 €0.67

  51 Venting filter
PS02504A10
1 €11.71

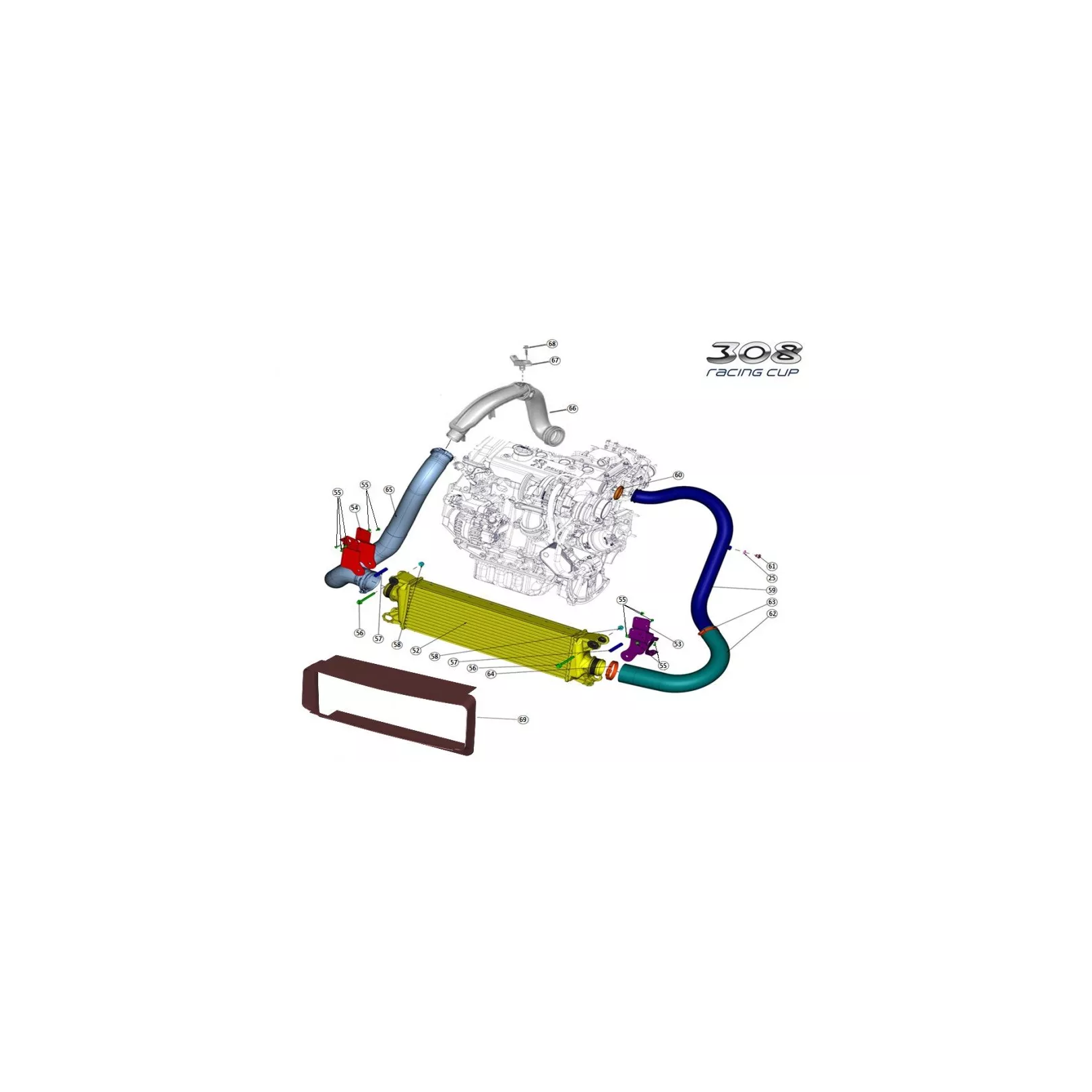

  52 Intercooler
9813218680
1 €810.76

  53 Intercooler left bracket
904437898A
1 €26.47

  54 Intercooler right bracket
904437908A
1 €26.47

  55 STD 4,8x13 Rivet
6973-05
10 €0.76

  56 Collar screw M8x125-90
6925F6
2 €3.46

  57 Spacer
9812984380
2 €34.44

  58 NUT WITH BASE M8X125-8-13
450343
4 €2.16

  59 Compressor outlet hose
904438488B
1 €756.00

  60 V band D55 VPP55 collar
0A2725735A
1 €7.04

  61 Threaded cap M10x100
23244
1 €15.02

  62 Intercooler inlet bend pipe
904444078A
1 €235.53

  63 Metal collar D50-70- Th12
6981J4
1 €4.03

  64 Clamp Ø68-85x12mm
PS91532A10
1 €3.62

  65 Air coupling (radiator side)
9812278380
1 €96.33

  66 Intake hose
9801876980
1 €141.40

  67 P2P-T2 Air pressure/Temp Sensor
9806432580
1 €234.73

  68 HEX HEAD TAPPING SCREW Ø6x18
6925P5
2 €0.40

  69 Intercooler duct
904435428C
1 €63.60

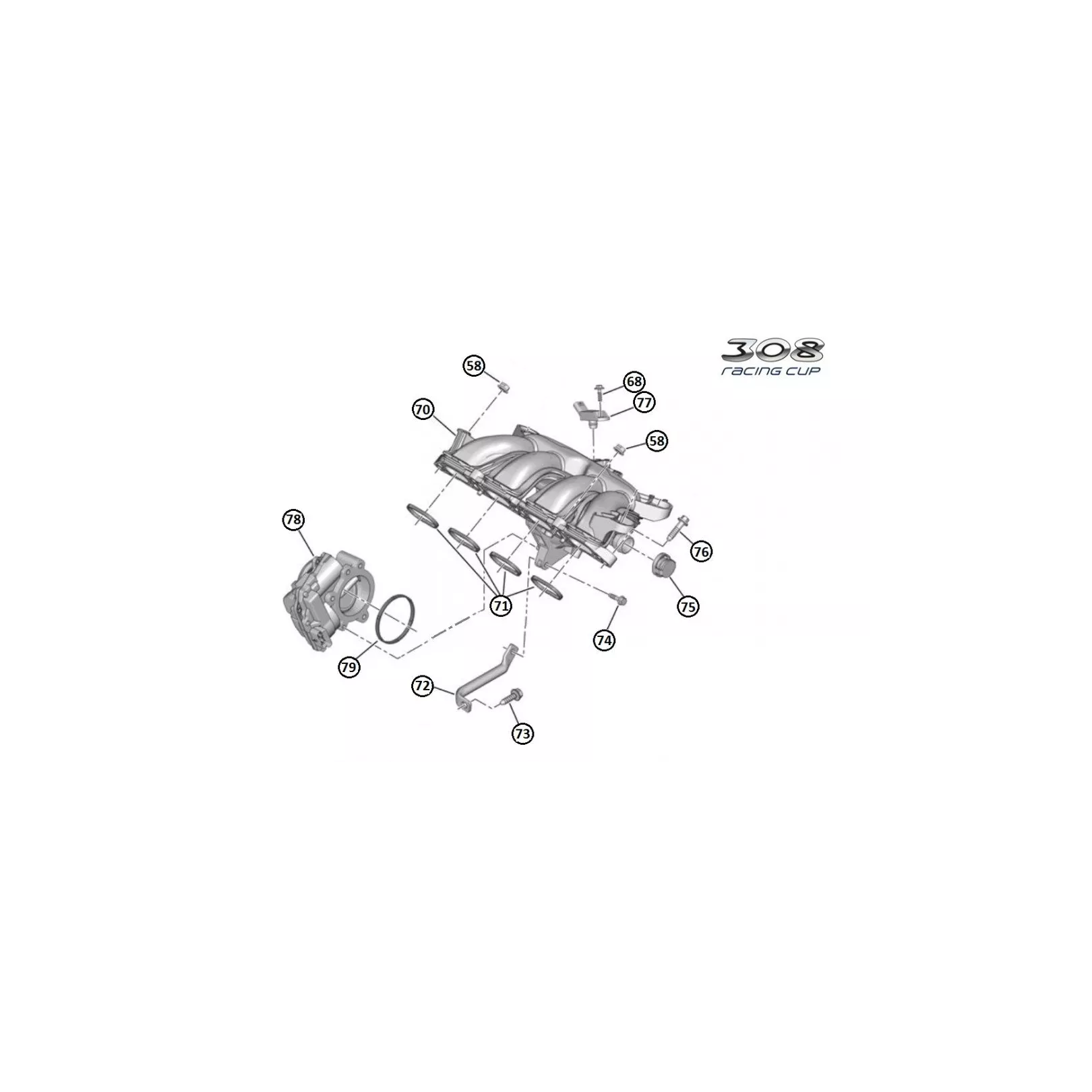

  70 INTAKE AIR DISTRIBUTOR
0361T0
1 €366.42

  71 SET OF DISTRIBUTOR SEALS
0348S9
4 €4.46

  72 INLET MANIFOLD BRACKET
0348T0
1 €15.03

  73 Collar Screw M8x30
6925W9
1 €2.68

  74 M6x25 Collar Screw
6925-45
1 €2.00

  75 Air intake Manifold cap
0361S4
1 €3.79

  76 SCREW WITH BASE M8x35
6925N5
3 €0.79

  77 P2p Air Intake pressure sensor
9806432480
1 €279.60

  78 Throttle body
V867527880
1 €512.98

  79 INTAKE VALVE SEAL PIECE
0348S7
1 €5.95

€9,287.65
