B12 COOLING SYSTEM

The full chapter is not available.

However, you can choose retail parts.

B12 COOLING SYSTEM

€2,004.25
Pack content
Ref Name Qty Price Number

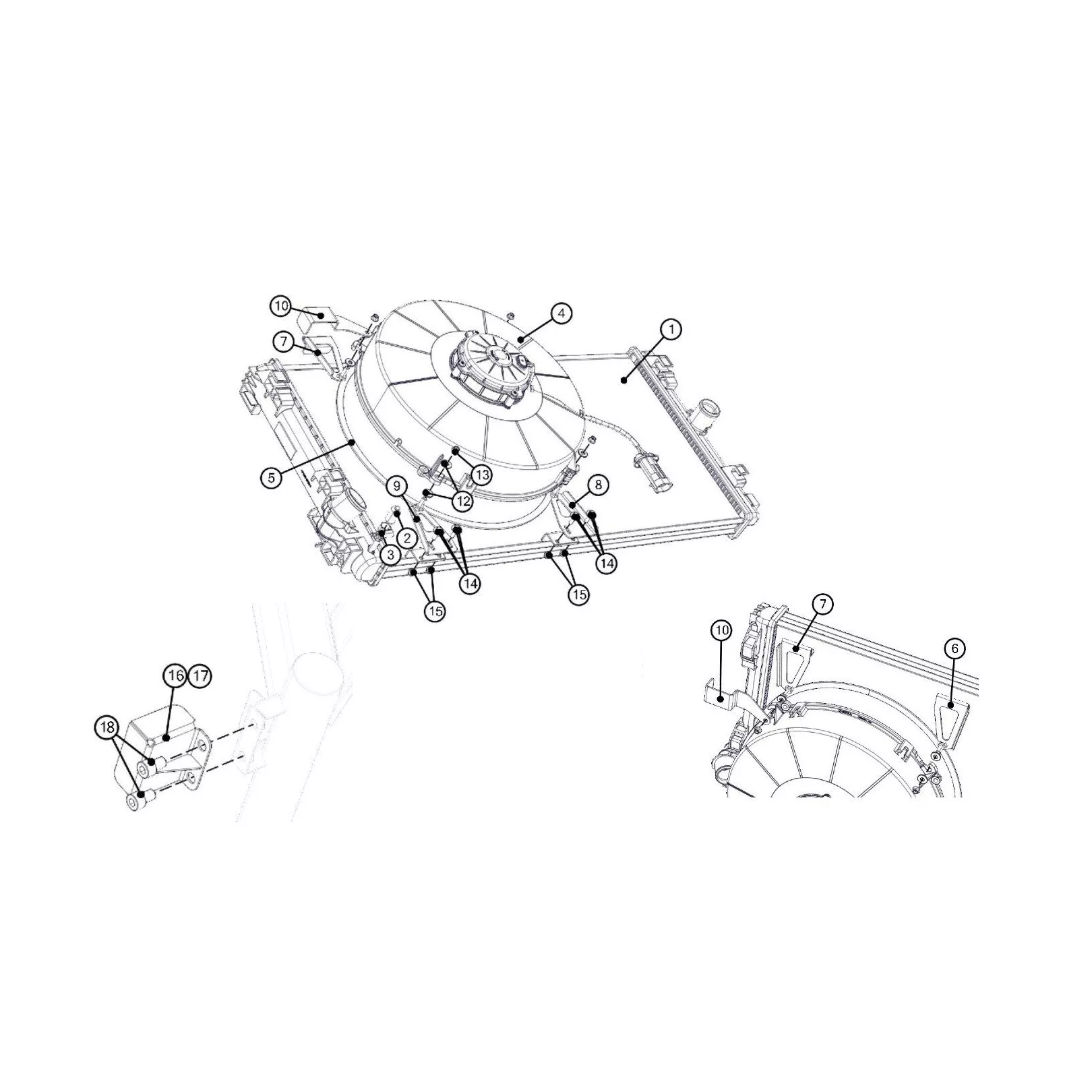

  1 WATER RADIATOR
904669828D
1 €584.40

  2 PLUG
1414-05
1 €2.01

  3 COLLIER VIS BANDE D9-14 E5 ACIER
ST01600024
3 €1.88

  4 SPAL motor fan
904448178A
1 €274.76

  5 Protective foam
1606409780
1 €40.12

  6 Right Upper Fan Unit Lug
904683228B
1 €18.22

  7 Left Upper Fan Unit Lug
904683238B
1 €18.30

  8 Right Lower Fan Unit Lug
904683248B
1 €14.88

  9 Left Lower Fan Unit Lug
904683258B
1 €14.88

  10 Left Fan Mounting Y Plate
904684738B
1 €12.66

  11 Lower Fan Mounting Hook
904684758B
2 €16.41

  12 Washer 6x14-1.5
694904
7 €1.52

  13 Collar nut M6
PS74001A10
4 €2.88

  14 SELF LOCKING SELF-TAP SCREWS M5x16
6923-07
4 €2.42

  15 Locking Nut M5x5.4x8
693673
4 €0.03

  16 RIGHT RADIATOR BRACKET
904661368A
1 €35.43

  17 LEFT RADIATOR BRACKET
904661388A
1 €35.43

  18 Socket Screw M8x125-12 12.9
PS82621A10
4 €0.74

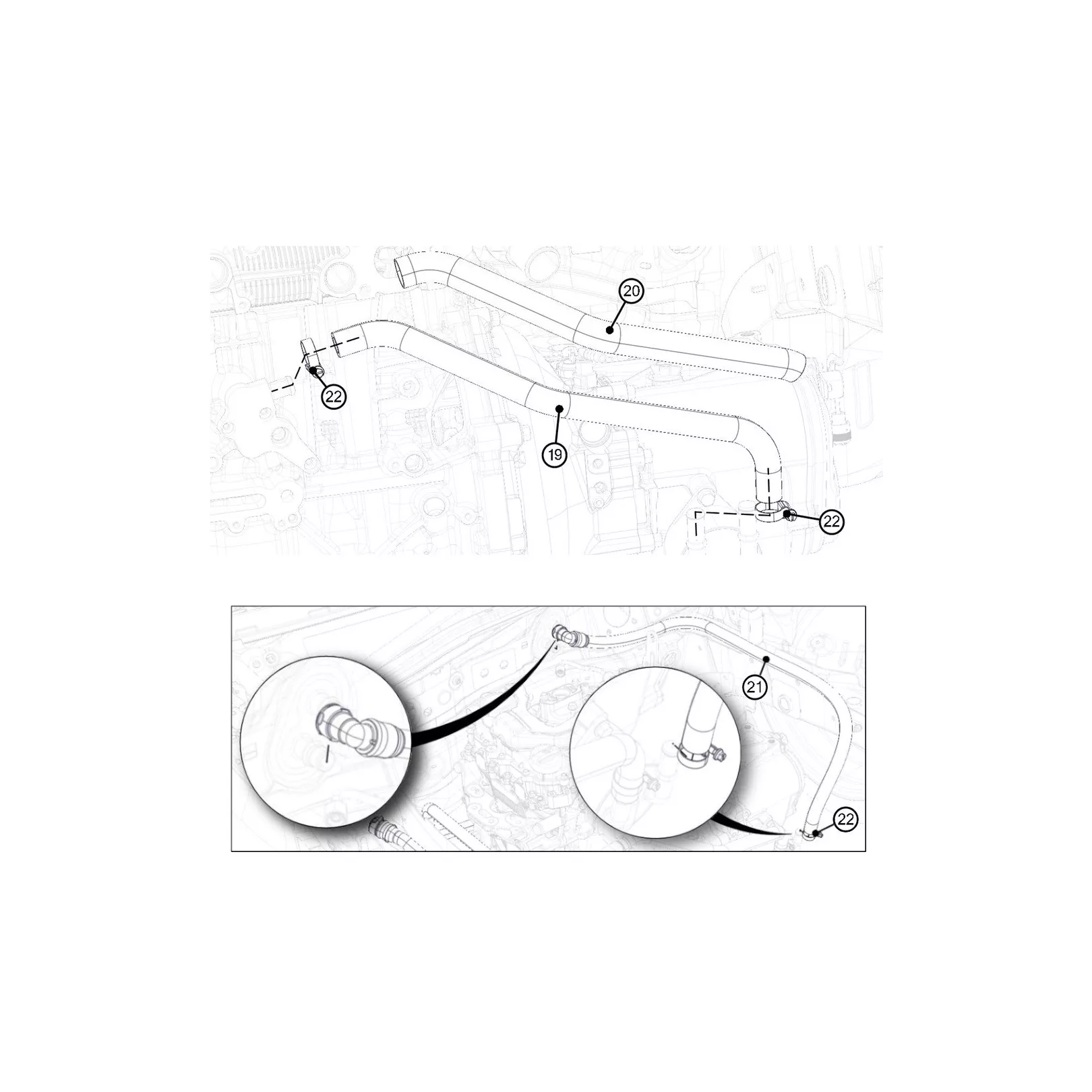

  19 WATER HOSE INLET OIL WATER COOLER
904661958A
1 €25.27

  20 Thermal Protection Ø25 - L 400
653830
1 €22.65

  21 WATER HOSE OUTLET OIL WATER COOLER
904650938A
1 €106.46

  22 Metal Collar D16-27 Th9
6981-H7
3 €0.16

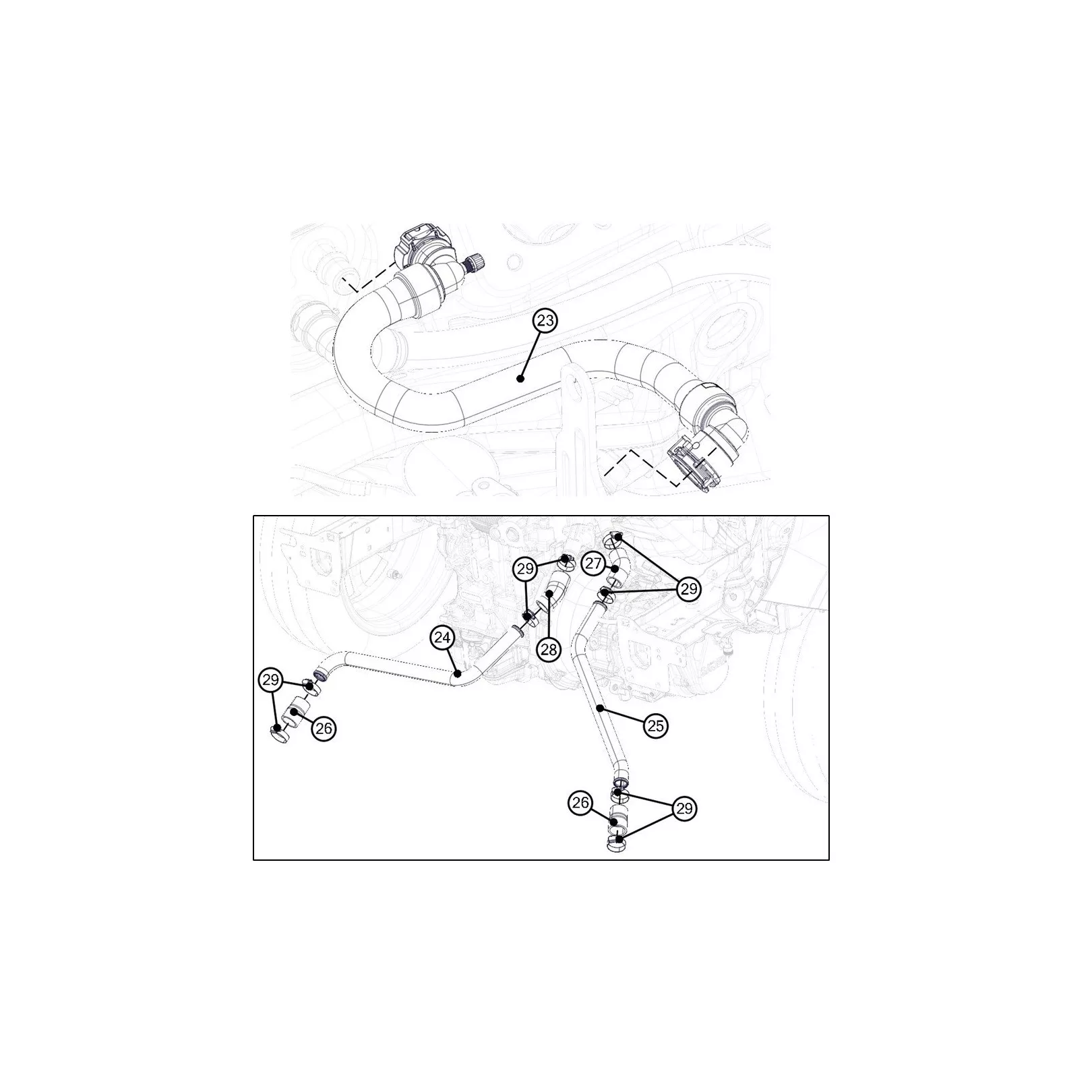

  23 Water outlet hose
9678822580
1 €29.11

  24 INLET WATER PIPE
904658418A
1 €136.00

  25 OUTLET WATER PIPE
904658428A
1 €192.40

  26 STRAIGHT CONNECTOR ID35 ID32
904659808B
2 €30.37

  27 45° Elbow Ø32
904658488B
1 €38.61

  28 ELBOW ID35 ID32 30 MODIFIED
904666118A
1 €46.27

  29 COLLAR W4 30-45X9
CS160085ST
8 €2.07

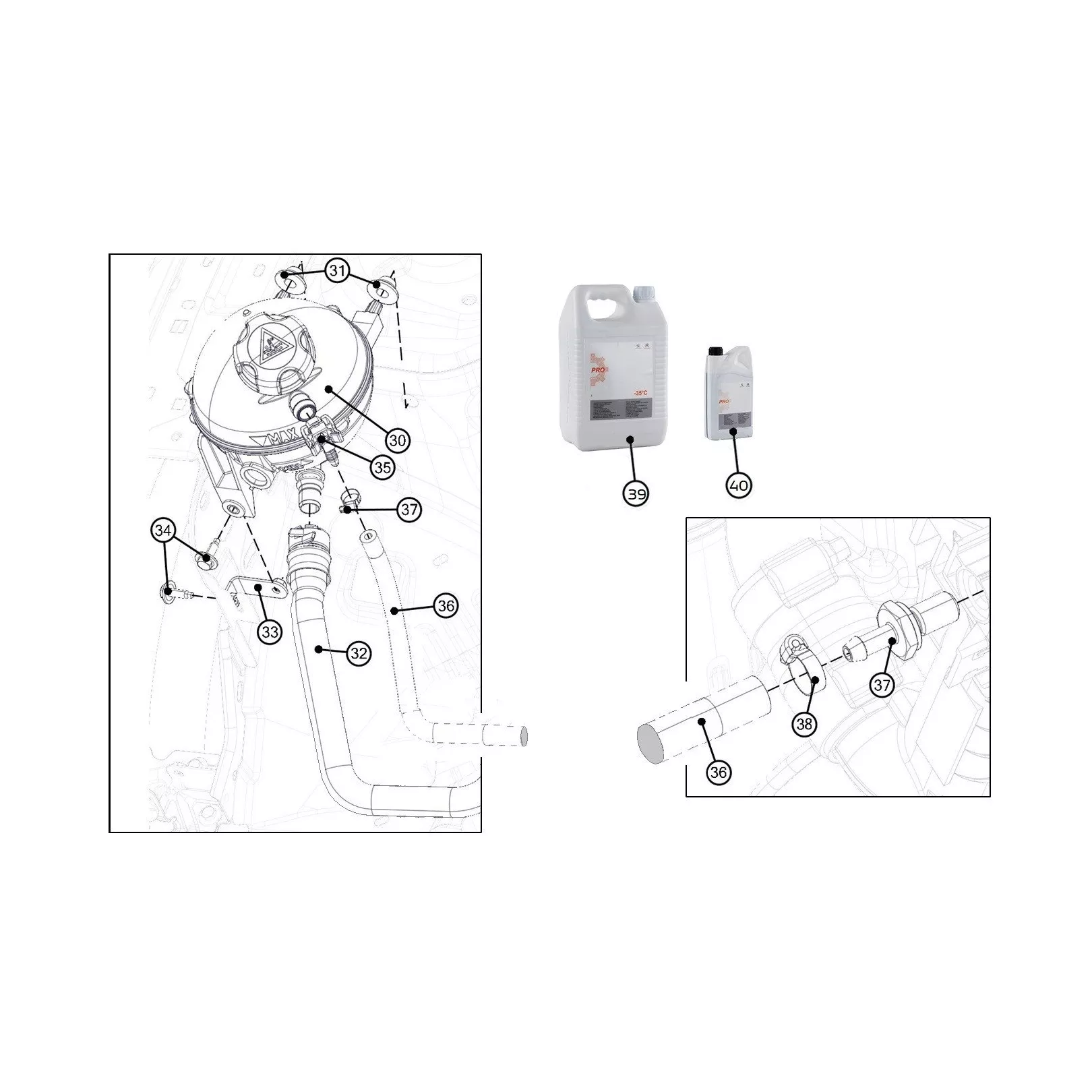

  30 Expansion tank
1323X6
1 €40.59

  31 Ring 10X14,5
132705
2 €1.53

  32 Expansion tank hose
9671349780
1 €32.32

  33 WATER BOX BRACKET
904651478A
1 €30.22

  34 Screw with washer M6x100-L18
692254
2 €2.62

  35 FITTING ELBOW 90 p5 ARAYMOND
ST04100054
1 €8.28

  36 DEGASSING HOSE COOLING RADIATOR
904662278B
1 €13.75

  37 WATER RADIATOR BLEED NOZZLE
904662268B
1 €30.91

  38 Metal collar ø11,5-7
PS91682A10
2 €0.69

  39 Coolant 5L PAE -35°C PSA
1637756480
1 €27.00

  40 Coolant 2L PAE -35°C PSA
1637756380
1 €12.15

€2,004.25
