C234 GEAR SELECTOR

  • Out of stock

The full chapter is not available.

However, you can choose retail parts.

C234 GEAR SELECTOR

€5,552.72
  • Out of stock

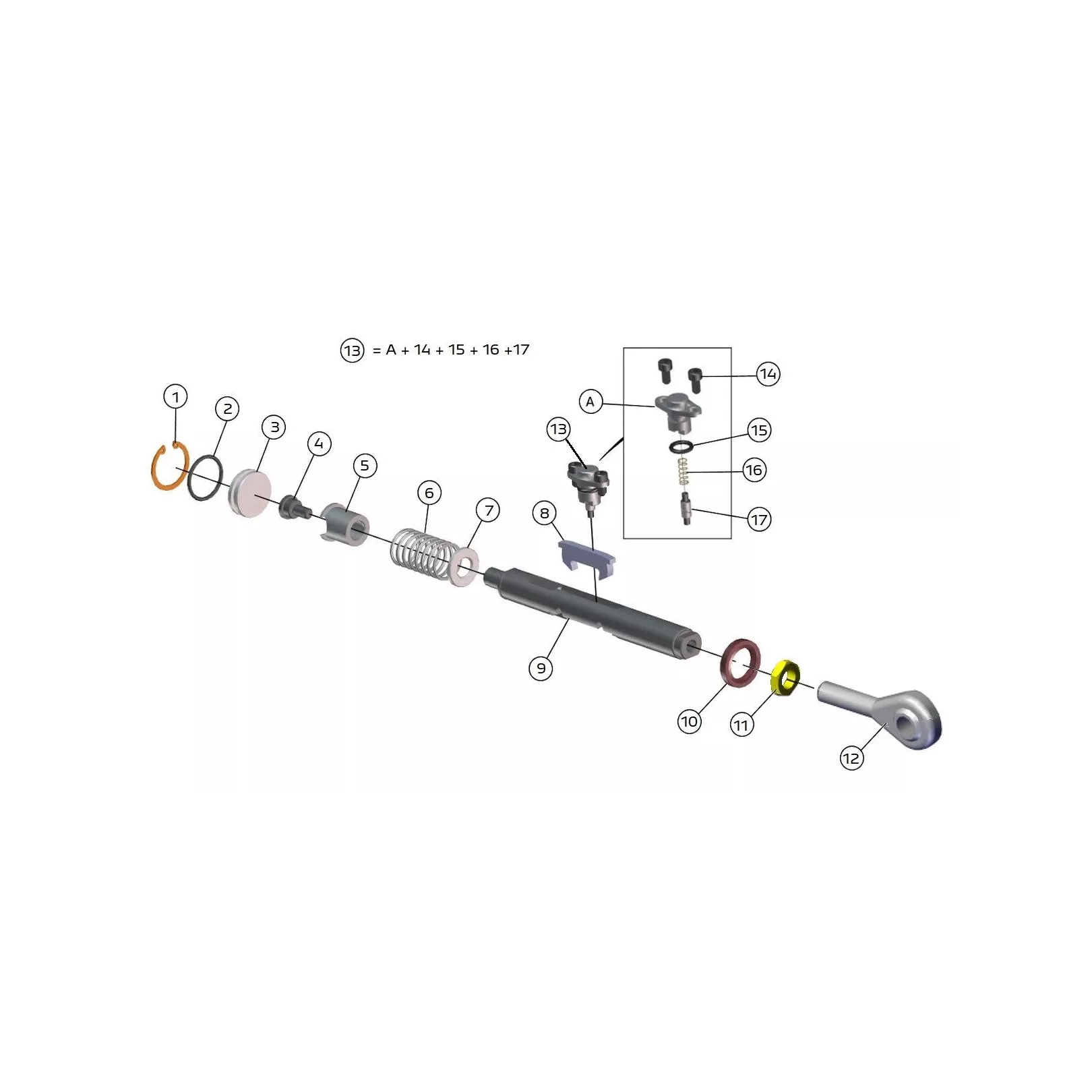

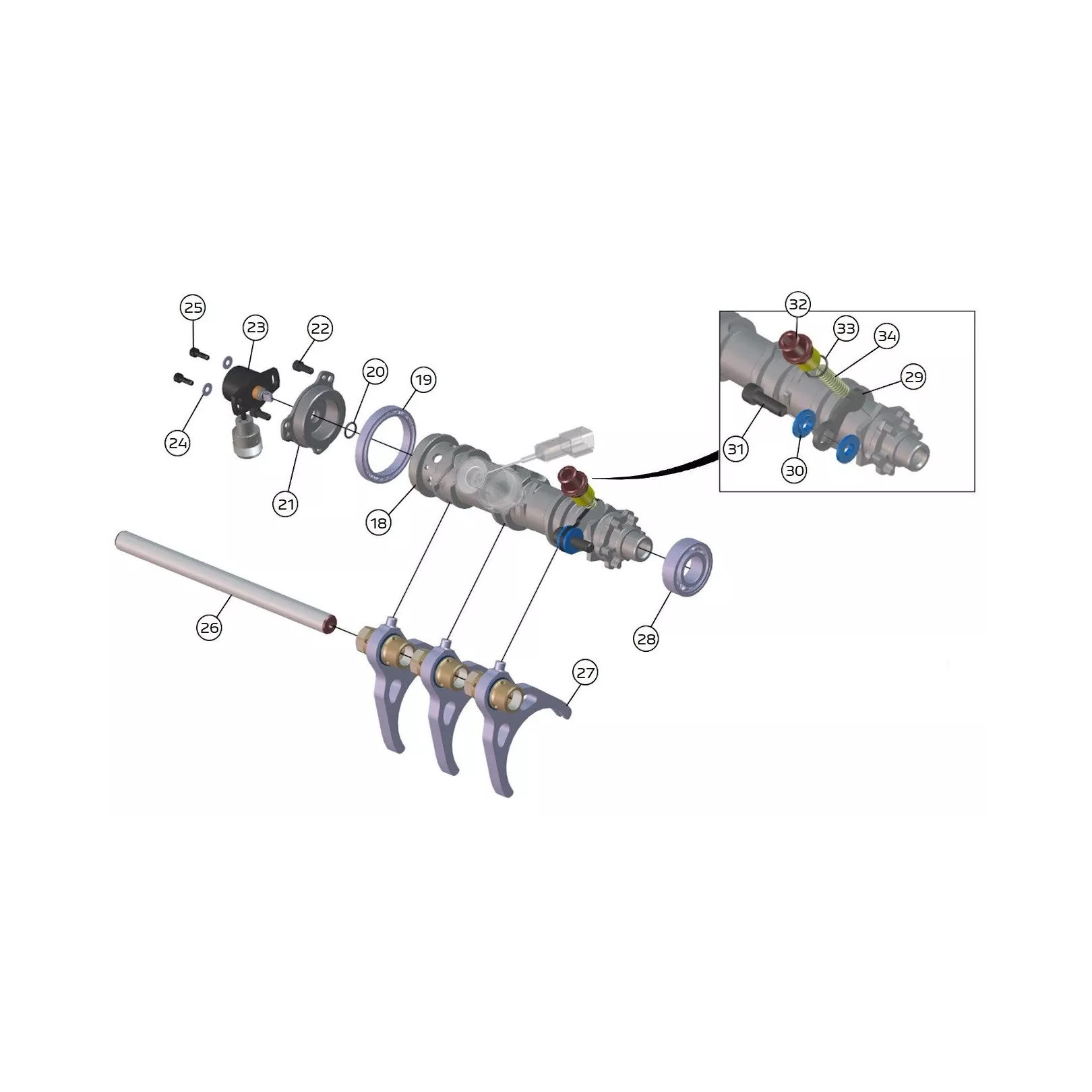

Pack content
Ref Name Qty Price Number
  1 Internal circlip Diam 29
602010		 1 €0.74

  2 Nitrile O-ring 24,5x2,40
201068		 1 €1.78

  3 Command sealing plug
F9050401		 1 €19.22

  4 Selector axle screw
F0059021		 1 €24.38

  5 Selector shouldered bushing
F0059022		 1 €18.01

  6 2 x 23,8 x 58,5 - 5 spring "5 turns"
801178		 1 €171.58

  7 Selector washer
F9003667		 1 €11.07

  8 Dual catch
F0059040		 1 €173.60

  9 Selector axle
F9062414		 1 €279.12

  10 Double lips seal nitrile Ø20x30x5
205099		 1 €11.38

  11 M8 H nut
401002		 1 €0.24

  12 spherical bearing D8
999014		 1 €57.04

  13 Complete dual pin rock
F14044032		 1 €203.12

  14 Screw CHC M5x10 cl.12.9 Zn
301513		 2 €0.57

  15 O-ring Ø10x2,5
201017		 1 €2.36

  16 Dual catch spring
801026		 1 €12.67

  17 Poussoir de cliquet
F9049071		 1 €71.11

  18 Barillet 5 vitesses équipé
F9063402		 1 €2,002.47

  19 Roulement à billes 61809
101126		 1 €99.52

  20 Nitrile O-ring Ø10x1,5
201290		 1 €0.38

  21 Support potentiomètre
F9062005		 1 €163.87

  22 Screw CHC M5x12 cl.12.9 Zn
301514		 3 €0.46

  23 Barrel position sensor
F0089049		 1 €543.72

  24 M4 Washer
502023		 2 €0.15

  25 Screw CHC M4x12 cl.10.9 Zn
301425		 2 €0.58

  26 Axe de fourchette
F9053404		 1 €123.30

  27 Fourchette
F9062403		 3 €400.98

  28 Ball bearing 6004
101004		 1 €9.86

  29 Indexer cam follower
F9050407		 1 €51.98

  30 Indexer bushing
F9050408		 2 €31.53

  31 Screw CHC M8 x 25 cl 12.9 HK
301169		 1 €0.40

  32 Vis indexeur
F9053411		 1 €48.70

  33 Joint torique viton Ø 14 x 1,5 - 80 shor
202079		 1 €1.92

  34 Ressort de compression 1,6 x 9,7 x 47 -
801175		 1 €179.01

€5,552.72
