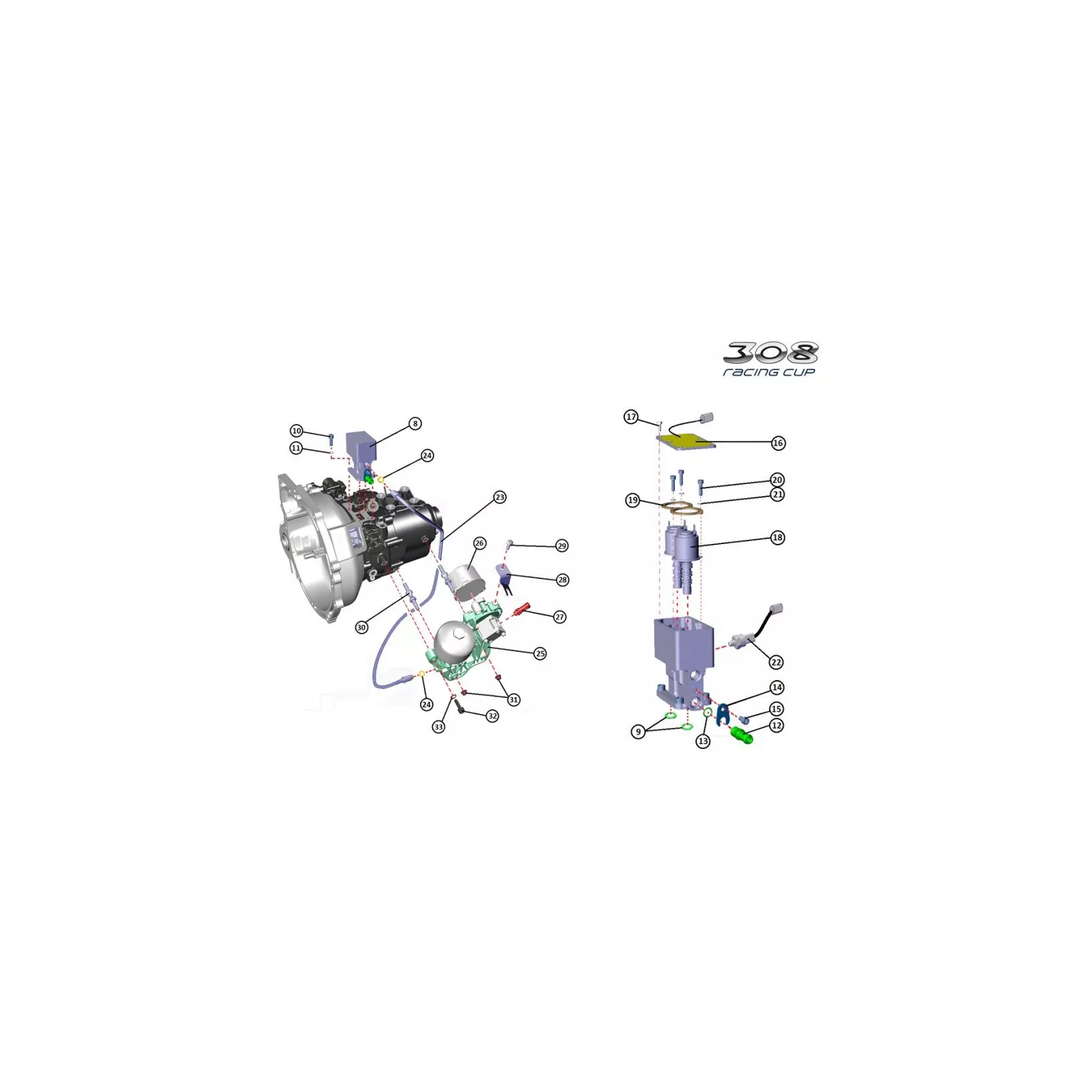

C29 - Gearbox electrical components

The full chapter is not available.

However, you can choose retail parts.

C29 - Gearbox electrical components

€3,597.03
Pack content
Ref Name Qty Price Number
  1 Pump Reservoir
401890
1 €54.80

  2 Reservoir Bracket
401896
1 €10.89

  3 Crimping Nut D6
PS74141A10
1 €0.55

  4 Screw with washer M6x100-L18
692254
2 €2.29

  5 Reservoir/Pump hose
904448868A
1 €27.55

  6 Return Hose
904444158A
1 €14.35

  7 Metal Collar D16-27 Th9
6981-H7
4 €1.62

  8 Hydraulic unit body
1C2913642C
1 €417.91

  9 O-Ring D6.07 x 1.78 FKM
PS77589A10
2 €0.15

  10 Socket Screw M6-16
691306
4 €2.13

  11 SPS Washer Ø6x10-0,7
PS86098A01
4 €0.21

  12 Reservoir Return Coupling
1C2963420B
1 €35.61

  13 Nitrile O-Ring
CS360294ST
1 €1.98

  14 High Pres. Hose Coupling Clamping Plate
1C2963440B
1 €16.17

  15 Screw M6x100-14
6924-32
1 €1.54

  16 Solenoid valve circuit board
904205728C
1 €367.41

  17 Screw M4x12
6924-11
7 €11.18

  18 Clutch solenoid valve
257420
2 €298.71

  19 Solenoid valve clamping plate
1C2913669A
1 €36.28

  20 Screw CHC M4x16
PS82004A10
3 €2.44

  21 SPS Washer Ø4,2x7-0,5
PS86597A10
3 €0.15

  22 Wired accumulator pressure sensor
904458418B
1 €136.82

  23 Hose pressure gearbox command
904474178B
1 €397.86

  24 Copper Seal d14 D20 Th1.5
PS81052A10
2 €3.81

  25 Actuator Electro-Pump
1608730380
1 €821.04

  26 Pump engine
259150
1 €289.90

  27 Electro-Pump Inlet Coupling
904448738A
1 €155.43

  28 Pump coupling stopping plate
1C2913662A
1 €20.25

  29 Screw RDL M6x16
6913-G9
1 €0.10

  30 pillar
F9046015
2 €20.67

  31 M10 Simmonds screw
499013
2 €6.79

  32 M10x35 cl10.9 ZN Chc bolt
301493
1 €1.11

  33 Washer SPS Ø10
599003
1 €0.81

  34 LDS Hydraulic Fluid (1L)
1615099680
1 €21.69

€3,597.03
