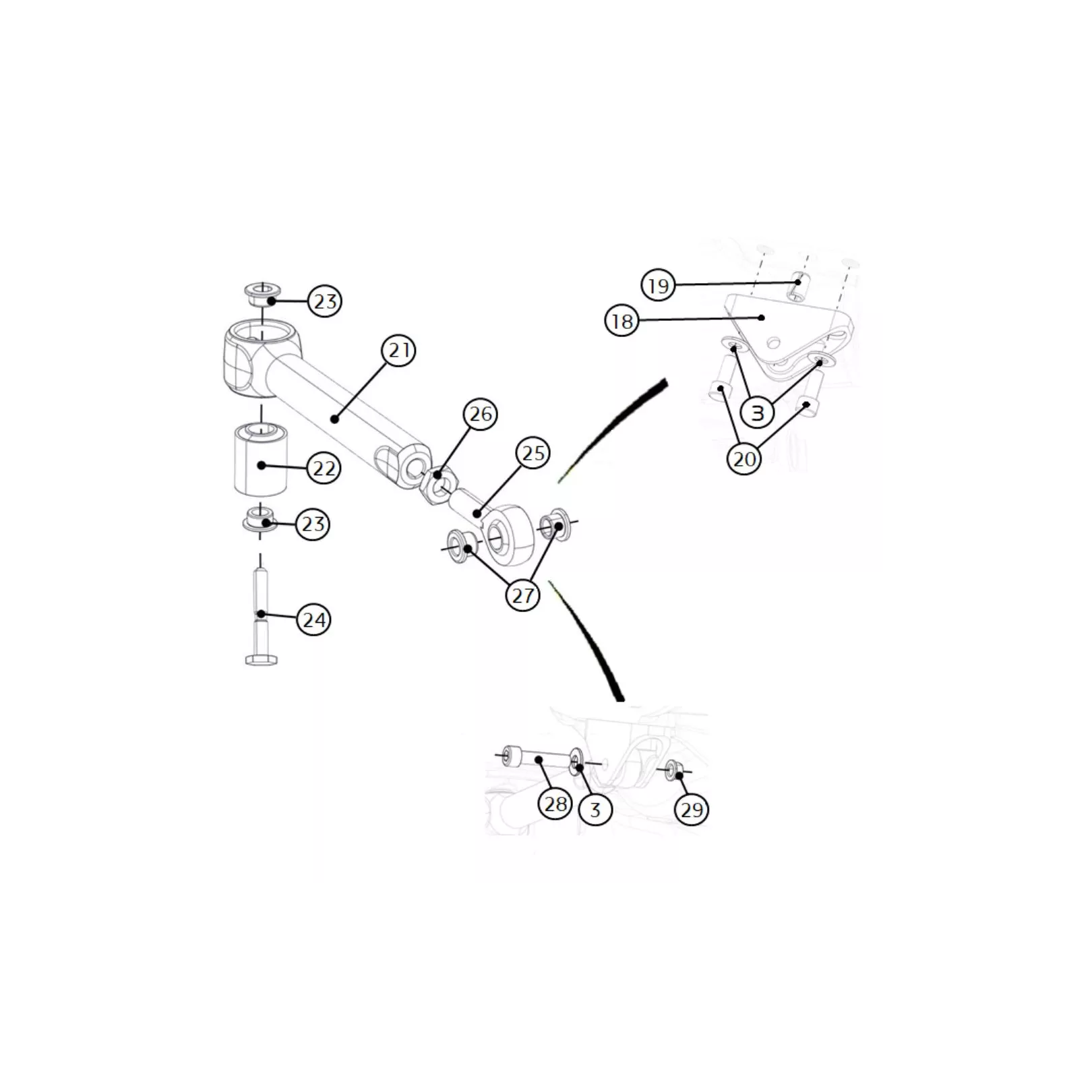

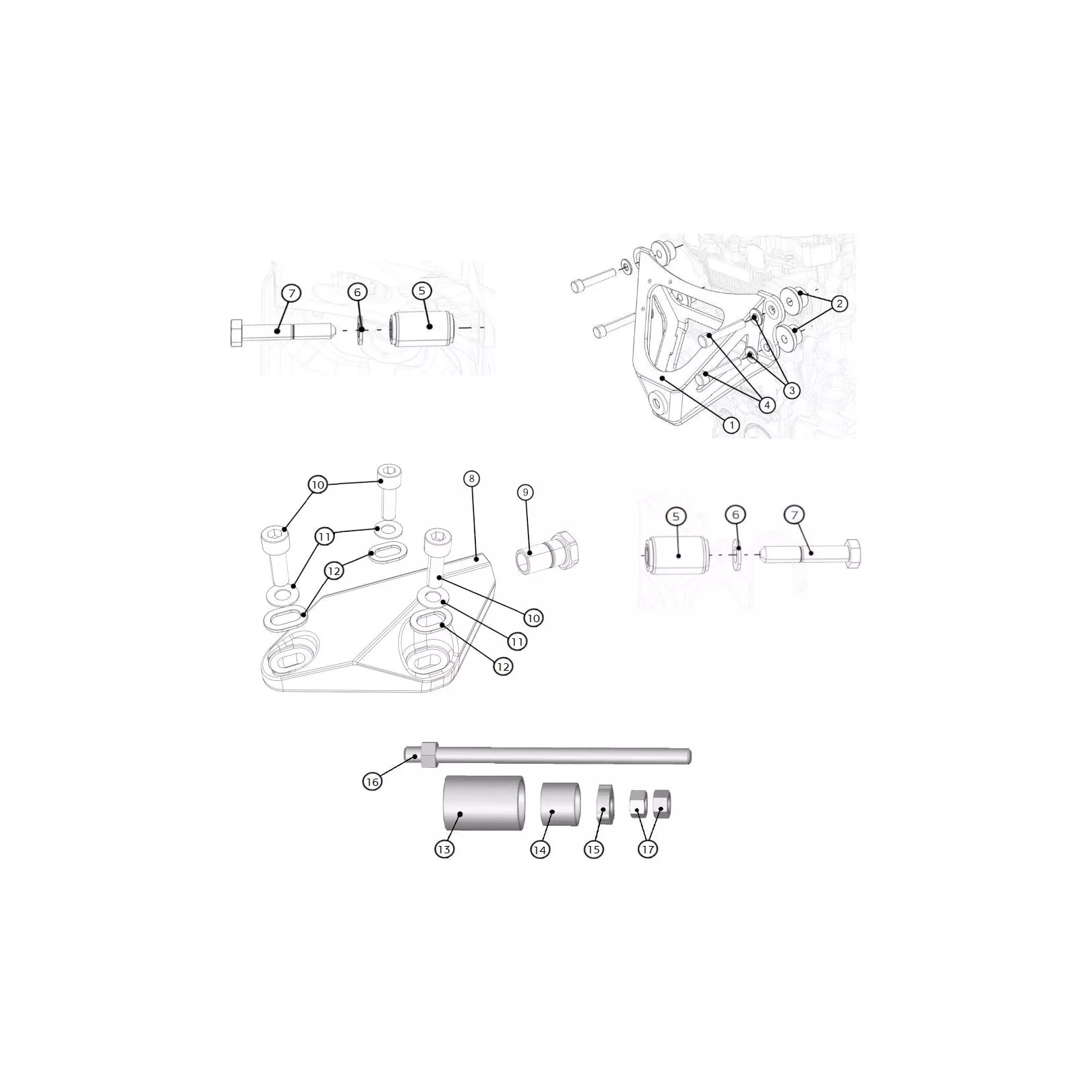

D11 ENGINE & GEARBOX MOUNTS

The full chapter is not available.

However, you can choose retail parts.

D11 ENGINE & GEARBOX MOUNTS

€1,250.44
Pack content
Ref Name Qty Price Number
  1 ENGINE MOUNT
904643038A		 1 €223.34

  2 ENGINE MOUNT BUSHING
904643048A		 4 €9.84

  3 Flat Washer 10x20x2
694677		 10 €2.71

  4 Screw M10-55
PS82145A10		 4 €1.21

  5 Paulstra Silent Bloc
0D1163428A		 2 €40.17

  6 Flat Washer 14-27
503737		 2 €1.51

  7 Screw M14x150-80
1803E1		 2 €3.88

  8 GEARBOX MOUNT
904657458D		 1 €117.93

  9 Gearbox mounting insert
0D1121567A		 1 €32.59

  10 Screw CHC m10 lg30 cl12.9
PS82008A10		 3 €0.63

  11 ANTITORQUE BRACKET GEARBOX
904630608A		 1 €86.85

  12 D14x20 pin
6968-36		 1 €4.47

  13 Socket Screw M10-25
PS82094A10		 2 €0.84

  14 Male Ball Joint M14
CS450113ST		 1 €84.91

  15 Right threaded M14x150 Nut
PS74817A10		 1 €2.65

  16 ANTITORQUE ROD
904657478A		 1 €100.80

  17 Silent Bloc D18-36 L46-40
PS93712A10		 1 €68.34

  18 Antitorque rod spacer
904405648A		 2 €38.64

  19 ANTITORQUE BALL JOINT SPACER
904630598A		 2 €10.95

  20 Low Head Hex Screw M12x175-80 12.9
904446958A		 1 €43.18

  21 Screw CHC M10x45 cl12.9
PS82009A10		 1 €1.05

  22 Collar Nut M10
PS74014A10		 1 €3.79

  23 Silentbloc Extraction Ring
0D1121391A		 1 €53.94

  24 Silentbloc Extraction Canon
0D1121393A		 1 €51.85

  25 Silentbloc Fitting Tool
0D1121395A		 1 €44.54

  26 Threaded shaft M12x210
0D1121396B-OUT		 1 €64.72

  27 HEXAGONAL NUT M12
6933-16		 3 €0.06

€1,250.44
