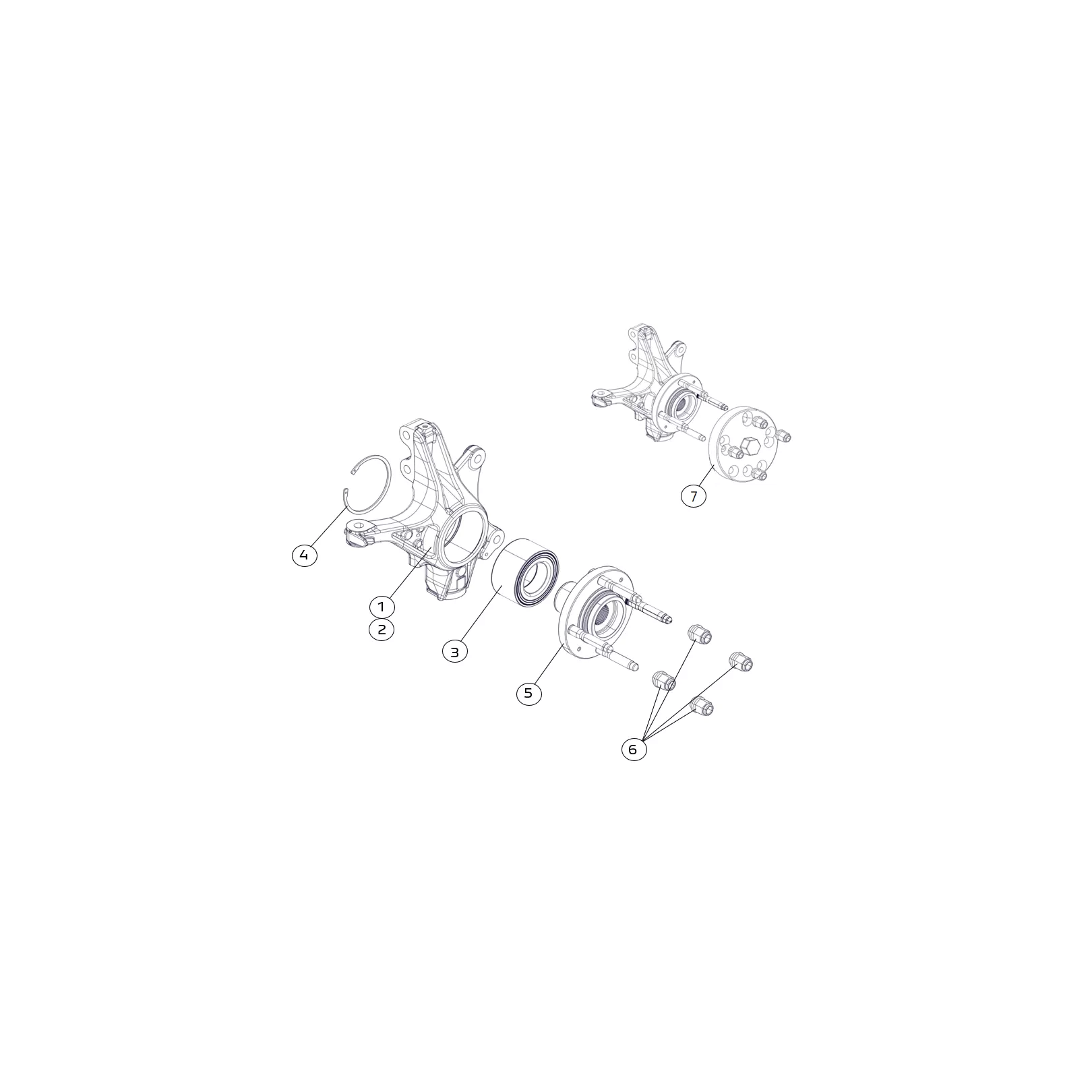

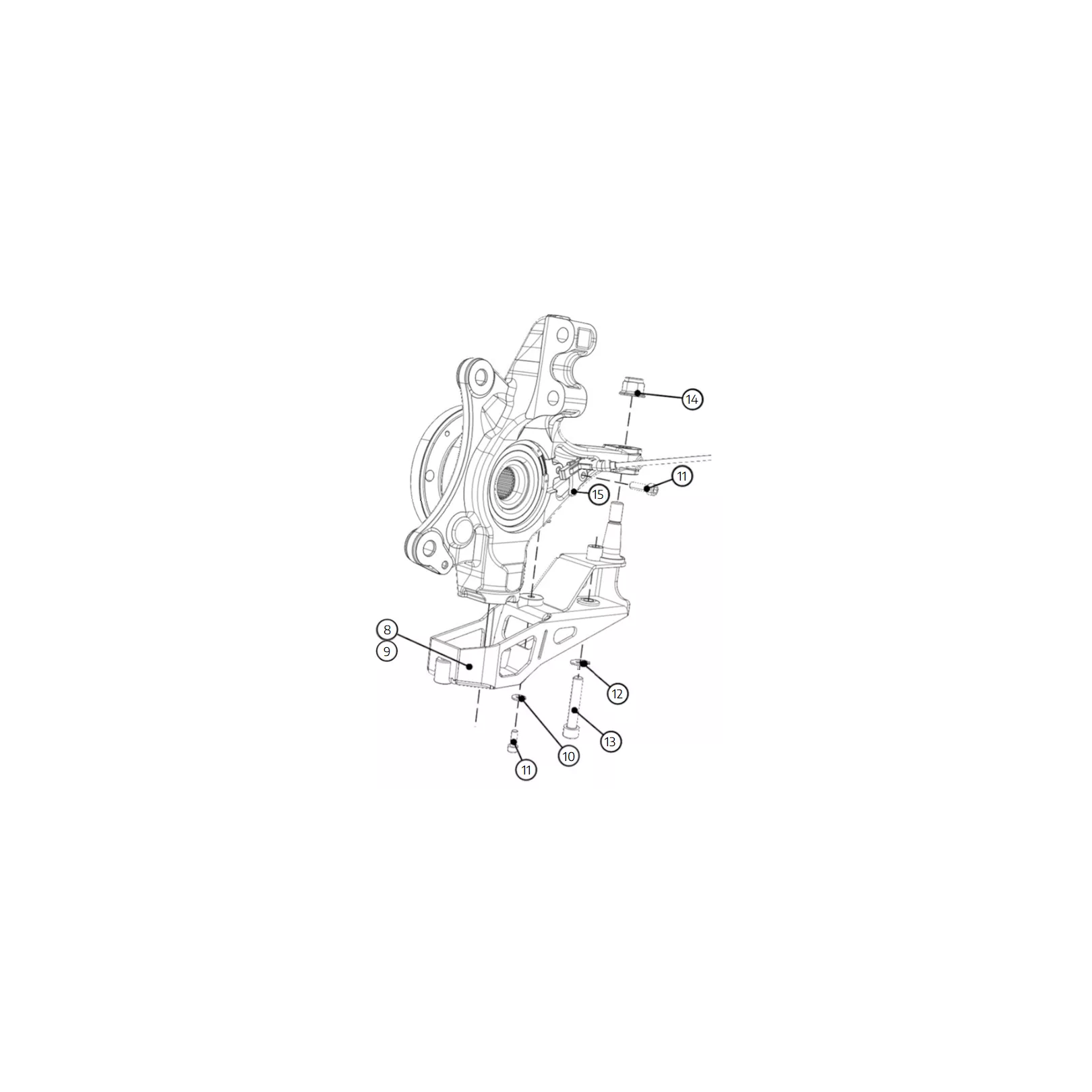

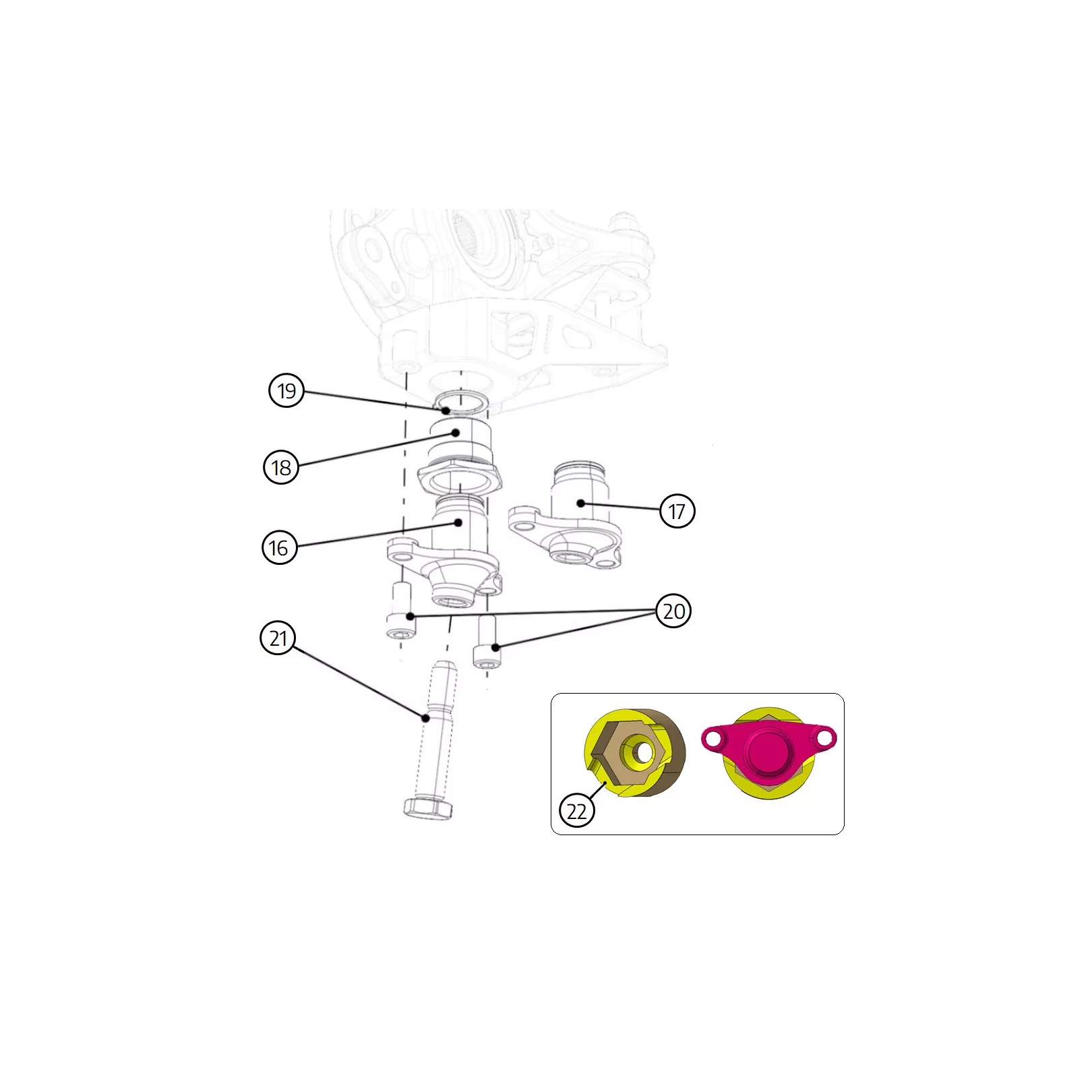

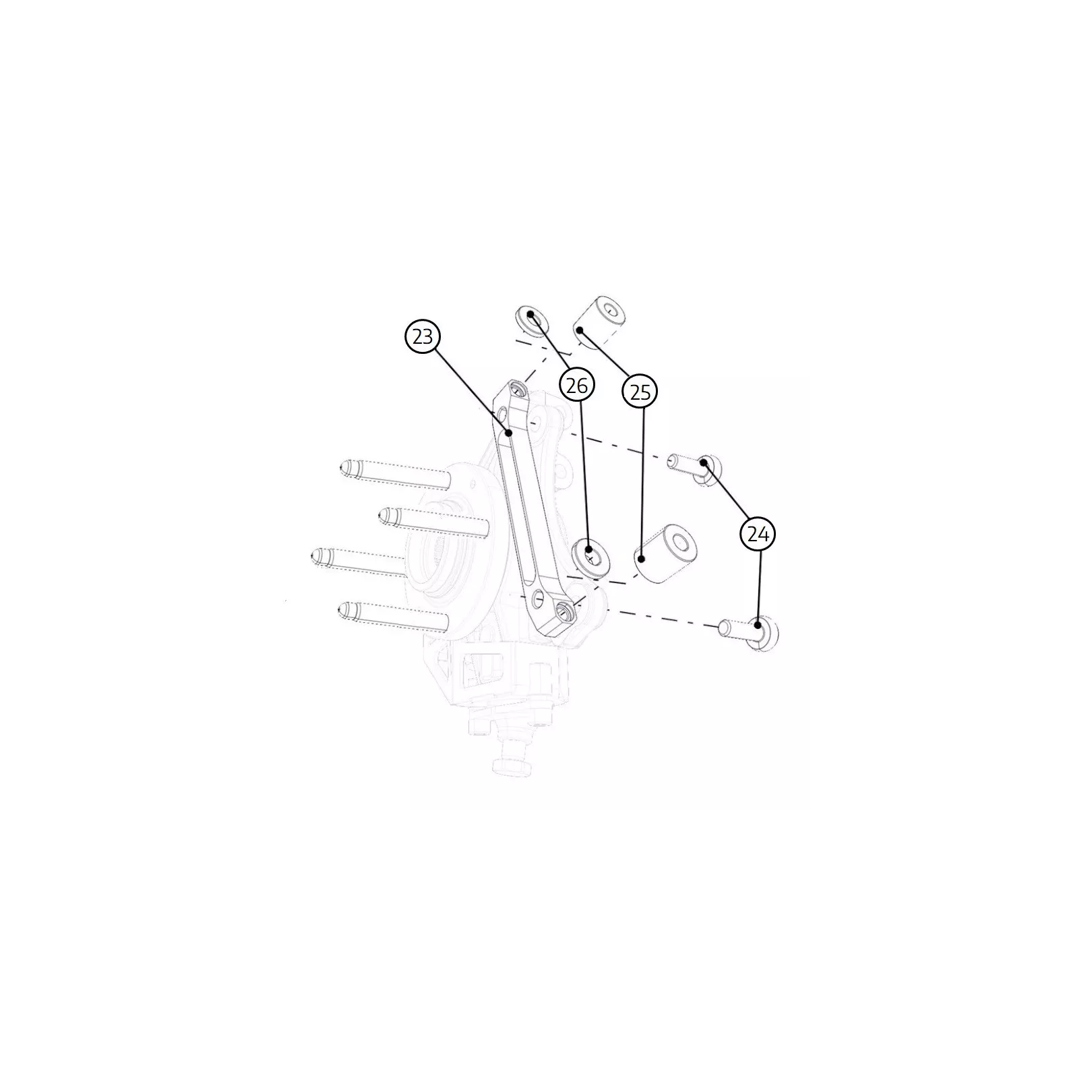

E13 FRONT UPRIGHT

The full chapter is not available.

However, you can choose retail parts.

E13 FRONT UPRIGHT

€4,201.33
Pack content
Ref Name Qty Price Number
  1 Front Right Swivel Pin
3647C0-R4
1 €420.00

  2 Front Left Swivel Pin
3646C0-R4
1 €420.00

  3 FRONT RIGHT TCA AXLE
904639608E
1 €507.19

  4 FRONT LEFT TCA AXLE
904639618E
1 €507.19

  5 Tooth Spring Washer d6-D14-th1.3
6947C7
2 €0.19

  6 CHC screw M6X100 L20 ZN CL10.9
CS530267ST
4 €0.79

  7 Self Locking Nut M12x125
503621
2 €4.34

  8 Screw CHC M10x150 L65
904639748A
2 €7.87

  9 Spring Washer Ø10 Type B
PS86538A10
2 €0.54

  10 WHEEL ABR SENSOR
4545K3
2 €85.77

  11 FRONT TARMAC PT D SUPPORT
904639758A
2 €243.94

  12 Front Gravel TCA Bracket
904639768A
2 €299.25

  13 RIGHT CENTERING SCREW
904639778B
2 €69.76

  14 Stop Ring AE28
PS72555A10
2 €0.26

  15 CHC Screw M10x20 cl12.9
PS82013A10
4 €0.85

  16 TCA axle screw
1E1320243A
2 €32.49

  17 Centring nut tightening socket R4
904678451A
1 €167.26

  18 Wheel stud M12x125-90
1E1320758B
8 €7.52

  19 Wheel Nut M12x125
1E1321057A
8 €11.32

  20 FRONT CALIPER BRACKET
904665798A
2 €87.42

  21 CALIPER FIXING SCREW M12X150-36
440547
4 €4.69

  22 TARMAC CALIPER SUPP SPACER
904666558A
4 €20.04

  23 Front gravel caliper mounting spacer
1E1321055B
4 €14.52

  24 REAR RIGHT STONE GUARD BRACKET
904667648A
1 €65.70

  25 REAR LEFT STONE GUARD BRACKET
904667658A
1 €65.70

  26 Socket Screw M8x125-16
691390
4 €2.77

  27 Rear Stone Guard
1E2221216A
2 €21.13

  28 Screw with washer M6x100-L18
692254
6 €2.42

  29 Self Locking Nut M6
693586
6 €0.37

€4,201.33
