E14A Front suspensions Tarmac

The full chapter is not available.

However, you can choose retail parts.

E14A Front suspensions Tarmac

€9,958.89

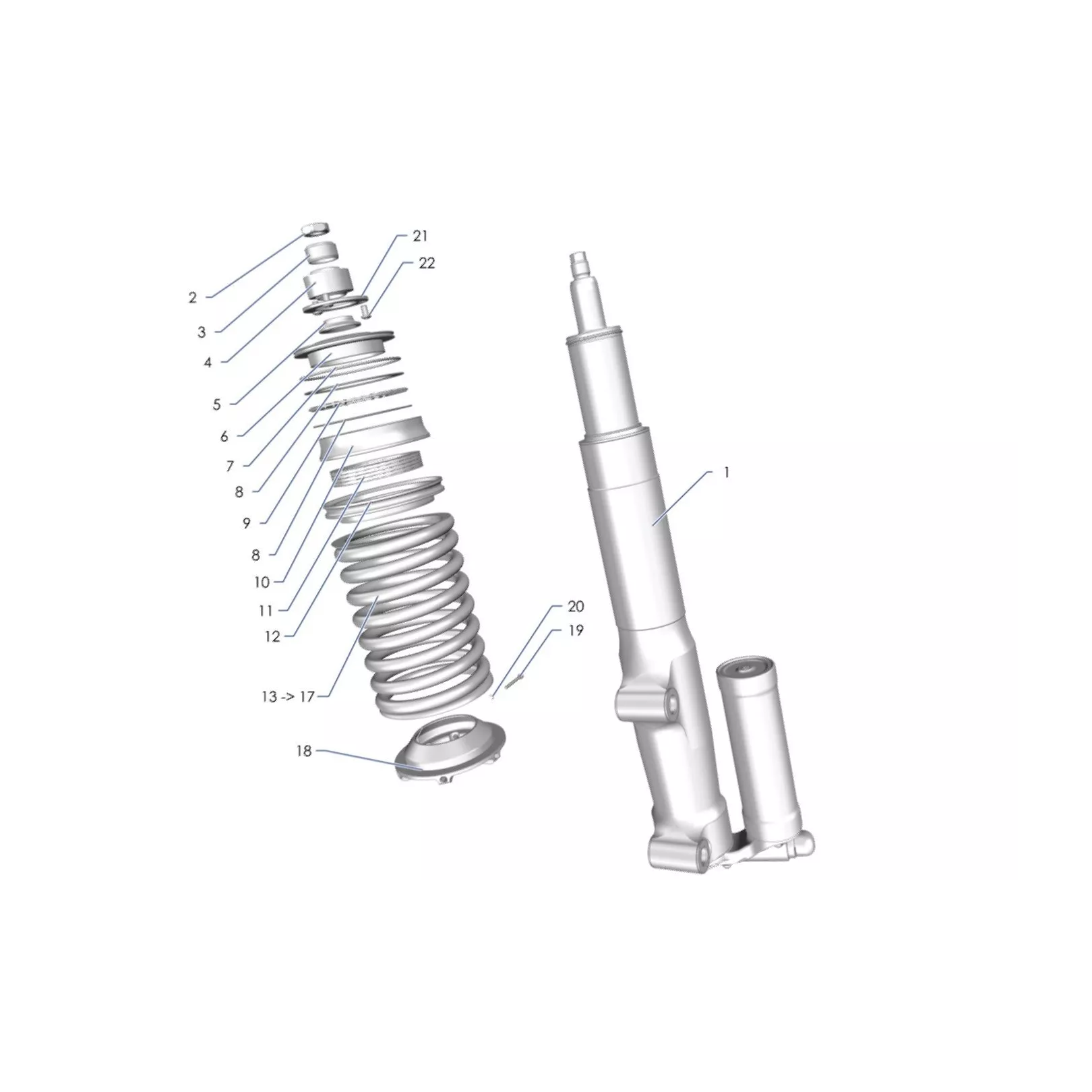

Pack content
Ref Name Qty Price Number
  1 Front tarmac shock absorber
1E1426558C
2 €3,724.80

  2 Upper nut ø16x150-8
380505
2 €2.90

  3 Point C upper spacer
1E1423877A
2 €24.79

  4 Bearing
PS88742A10
2 €306.32

  5 Point C lower spacer
1E1423878A
2 €34.84

  6 Spring support
1E1426737A
2 €30.44

  7 O-ring
PS77031A10
2 €0.72

  8 Thin washer
CS100004ST
4 €7.87

  9 Needle thrust bearing
CS100003ST
2 €34.20

  10 Spring cup
1E1422402B
2 €35.91

  11 Front helper spring
1E1463020A
2 €78.96

  12 Intermediate cup
1E1422401C
2 €44.12

  13 Spring 3.7 daN/mm Tarmac(FIA)
1E1427132A
2 €69.30

  14 Spring 4.1 daN/mm Tarmac
1E1427133A
2 €60.87

  15 Spring 4.6 daN/mm Tarmac (FIA)
1E1427134A
2 €69.30

  16 Spring 5.2 daN/mm Tarmac
1E1427135A
2 €60.87

  17 Spring 5.8 daN/mm Tarmac (FIA)
1E1427136A
2 €69.30

  18 Spring nut
1E1426738A
2 €94.05

  19 Screw M4
PS82099A10
2 €0.42

  20 SPS Washer Ø4,2x7-0,5
PS86597A10
2 €0.15

  21 Pt C bearing holder spacer
2K9A26999A
2 €36.93

  22 Screw CHC M6x10
PS85070A10
6 €0.90

  23 Agent anti-fretting (0,5 kgs)
PS59502A10
1 €88.92

  24 Spring tool
1E1426456A-OUT
1 €224.28

  25 Front rebound setup tool Ohlins
1E1421287A-OUT
1 €48.37

  26 Metal collar D50-70 Th9
6981K1
1 €1.93

€9,958.89
