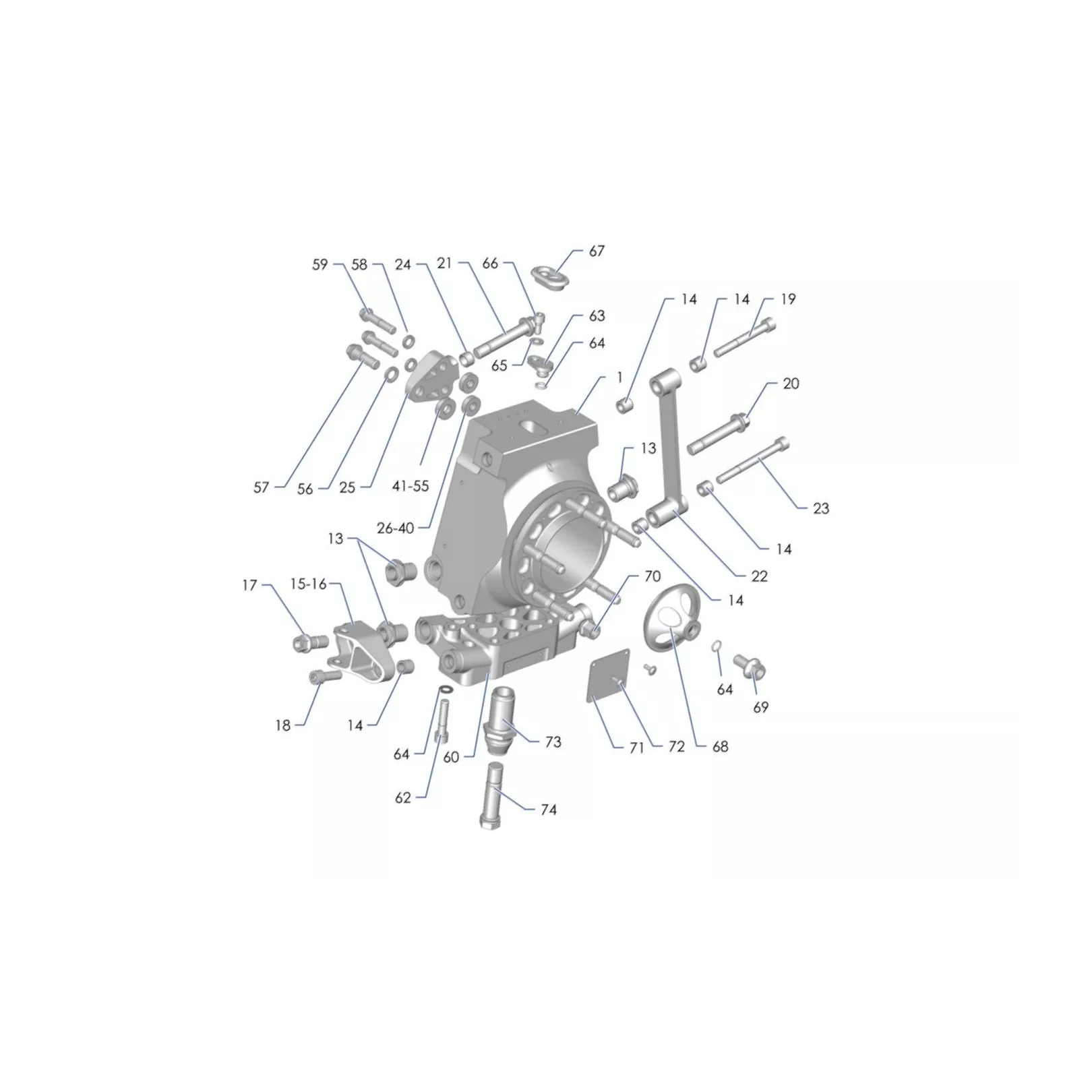

E24A Rear tarmac uprigh

The full chapter is not available.

However, you can choose retail parts.

E24A Rear tarmac uprigh

€13,087.22
Pack content
Ref Name Qty Price Number

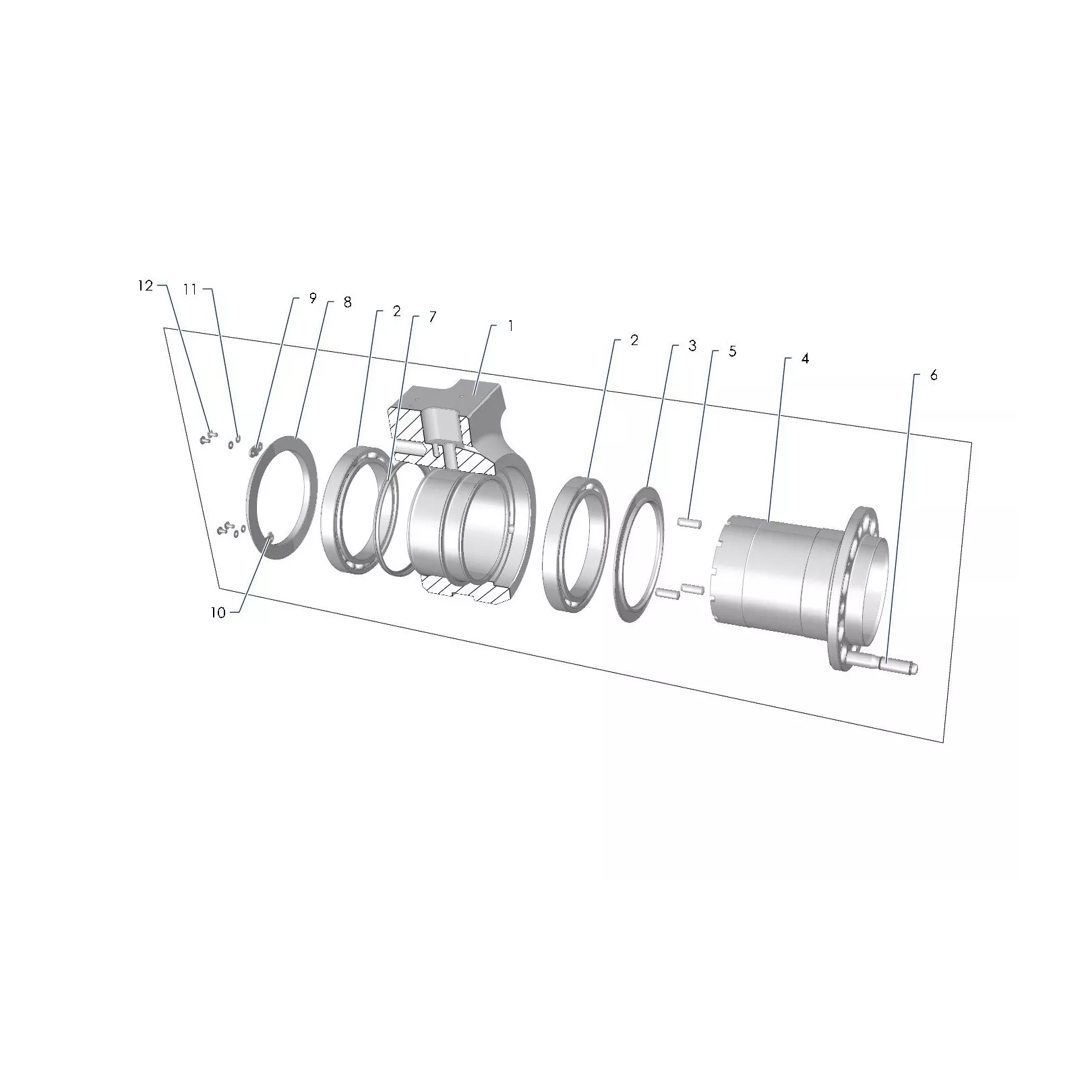

  1 R5 Upright (with paired spacer)
1E1326058B
2 €1,260.00

  2 Reinforced Bearing
903535338B
4 €298.80

  3 Hub Bearing Shim
1E1318064B
2 €185.95

  4 Hub M100x1
1E1318068E
2 €686.28

  5 Locating pin Ø8x23
1E1318147A
6 €25.21

  6 Wheel Stud Ø12x125
903538348B
10 €40.70

  7 Magnetic coding wheel
1E1325924A
2 €210.52

  8 Hub Nut M100x1 Th8
1E1318063A
2 €484.70

  9 Stopper Type 1
1E1318086A
2 €23.20

  10 Stopper Type 2
1E1318087A
2 €23.20

  11 Spring Washer Ø4 type A
PS86002A10
8 €0.04

  12 Socket Screw M4-8 12.9
PS82084A10
8 €0.13

  13 Damper Insert
1E1326051B
6 €32.72

  14 Locator Ø16-10x13
1E1326111A
10 €8.89

  15 Right M point Clevis
1E2426554B
1 €615.60

  16 Left M point Clevis
1E2426555B
1 €615.60

  17 Screw Ø14x150-30
1E1318136C
2 €21.37

  18 Screw CHC m10 lg30 cl12.9
PS82008A10
2 €0.63

  19 Screw CHC M10x150 L80 cl12.9
PS82538A10
2 €2.11

  20 Collar Screw Ø14x150-77
1E1325335C
2 €21.03

  21 Vis MJ14x150 L83 58 cl.12.9 six pans SP
1E1328096A
2 €16.41

  22 Tarmac Caliper Mounting
1E1326127A
2 €116.28

  23 Screw CHC M10x100 cl12.9
PS82179A10
2 €2.37

  24 Center Finder Ø17-14x10
1E1325079A
2 €8.78

  25 Camber Mounting
1E1326155A
2 €133.89

  26 Camber washer Ø10 ép 6.45
1E1327417B
4 €3.34

  27 Camber washer Ø10 ép 6.90
1E1327418B
4 €3.34

  28 Camber washer Ø10 ép 7.35
1E1327419B
4 €3.34

  29 Camber washer Ø10 ép 7.80
1E1327420B
4 €3.34

  30 Camber washer Ø10 ép 8.25
1E1327421B
4 €3.34

  31 Camber washer Ø10 ép 8.70
1E1327422B
4 €3.34

  32 Camber washer Ø10 ép 9.15
1E1327423B
4 €3.34

  33 Camber washer Ø10 ép 9.60
1E1327424B
4 €3.34

  34 Camber washer Ø10 ép 10.05
1E1327425B
4 €3.34

  35 Camber washer Ø10 ép 10.50
1E1327426B
4 €3.34

  36 Camber washer Ø10 ép 10.95
1E1327427B
4 €3.34

  37 Camber washer Ø10 ép 11.40
1E1327428B
4 €3.34

  38 Camber washer Ø10 ép 11.85
1E1327429B
4 €3.34

  39 Camber washer Ø10 ép 12.30
1E1327647A
4 €6.76

  40 Camber washer Ø10 ép 12.75
1E1327648A
4 €6.76

  41 Camber washer Ø12 ép 6.45
1E1327431B
2 €3.90

  42 Camber washer Ø12 ép 6.90
1E1327432B
2 €3.90

  43 Camber washer Ø12 ép 7.35
1E1327433B
2 €3.90

  44 Camber washer Ø12 ép 7.80
1E1327434B
2 €3.90

  45 Camber washer Ø12 ép 8.25
1E1327435B
2 €3.90

  46 Camber washer Ø12 ép 8.70
1E1327436B
2 €3.90

  47 Camber washer Ø12 ép 9.15
1E1327437B
2 €3.90

  48 Camber washer Ø12 ép 9.60
1E1327438B
2 €3.90

  49 Camber washer Ø12 ép 10.05
1E1327439B
2 €3.90

  50 Camber washer Ø12 ép 10.50
1E1327440B
2 €3.90

  51 Camber washer Ø12 ép 10.95
1E1327441B
2 €3.90

  52 Camber washer Ø12 ép 11.40
1E2427442B
2 €3.90

  53 Camber washer Ø12 ép 11.85
1E1327443B
2 €3.90

  54 Camber washer Ø12 ép 12.30
1E1327649A
2 €10.22

  55 Camber washer Ø12 ép 12.75
1E1327650A
2 €9.85

  56 Washer Ø12x19.5x3
1E1318146A
2 €11.07

  57 Screw M12x125-38 cl12.9
1E1318143B
2 €43.92

  58 Washer Ø10x16.5x3
1E1318145A
4 €6.97

  59 Screw Ø10x125-48 cl12.9
1E1318144B
4 €19.72

  60 Chape pt D Asph avec Keensert
1E1327234A
2 €873.19

  61 SPS Washer d10-D16-E1
PS86571A10
10 €0.37

  62 Screw CHC M10x45 cl12.9
PS82009A10
10 €1.05

  63 Upright plug (speed sensor)
1E1326679A
2 €67.56

  64 O-Ring Ø10.82x1.78
903729718A
4 €0.34

  65 Washer 8x16-1.5
6947-78
2 €1.12

  66 Socket Screw M8-16 12.9
PS82130A01
2 €0.63

  67 ABS Sensor Plug
96141076
2 €6.52

  68 Steel Fixing Flange Rzeppa
1E1324300B
2 €270.79

  69 Screw Ø12x125-24
1E1318079B
2 €20.52

  70 Wheel Nut Ø12x125
1E1318085B
10 €8.47

  71 D Point Protecting Plate
1E1326782A
2 €9.24

  72 Screw ULF M5-12
PS82634A10
4 €0.20

  73 Tarmac D Point Insert
1E1326685B
2 €71.44

  74 D point Ø18x150 Axle
1E1326395A
2 €46.17

€13,087.22
