E25 REAR SUSPENSION

E25 REAR SUSPENSION

€8,798.42

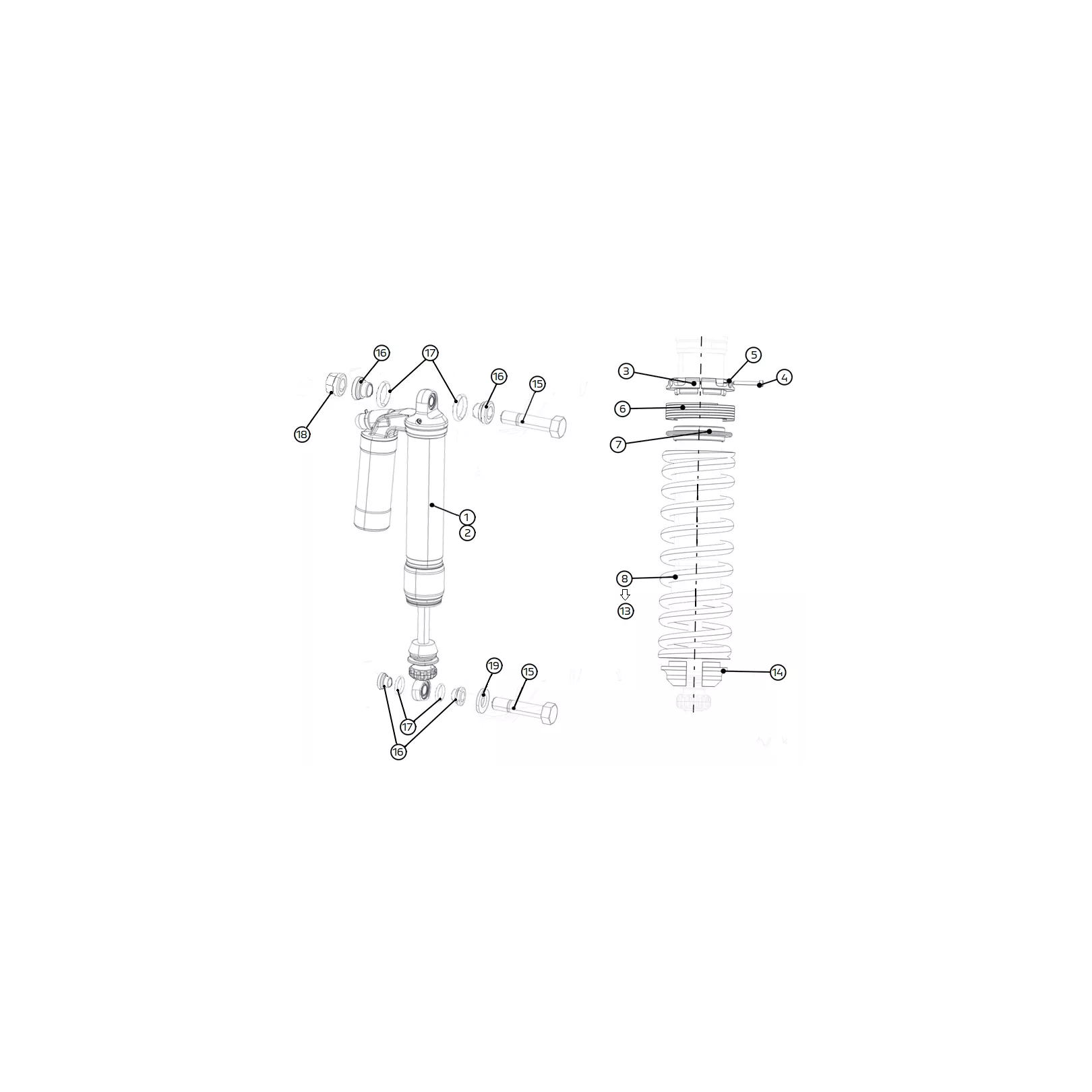

Pack content
Ref Name Qty Price
  1 REAR TARMAC DAMPER
904640968B
2 €1,633.20

  2 REAR GRAVEL DAMPER
904640978B
2 €1,633.20

  3 Adjustable spring cup
1E2521148C
2 €74.22

  4 Screw CHC M4x30 cl.10.9
CS530270ST
2 €0.54

  5 SPS Washer Ø4,2x7-0,5
PS86597A10
2 €0.15

  6 Rear helper spring 5 N/mm
1E2460499A
2 €129.48

  7 Intermediate Spring Cup
1E2462065B
2 €16.41

  8 Rear Spring 28N.m (Gravel)
904659388A
2 €97.09

  9 Rear Spring 32N.mm (Gravel)
1E2521282A
2 €133.69

  10 Rear spring 36 N/mm
1E2521281A
2 €104.71

  11 Rear Spring 40.5N.mm (Tarmac)
1E2521280A
2 €122.30

  12 Rear Spring 47N.mm (Tarmac)
1E2521278A
2 €87.55

  13 Rear Spring 52N.mm (Tarmac)
1E2521277A
2 €106.94

  14 Rear Bottom Spring Cup
1E2563055B
2 €50.96

  15 Bottom damper screw
1E2563675B
4 €15.56

  16 Rear damper spacer
1E2521149B
8 €38.95

  17 O-ring A18.6 T3.5
CS360019ST
8 €1.94

  18 Collar nut Ø12x150
PS74043A10
2 €13.38

  19 PLAIN WASHER Ø12X24-2,5
4010H4
2 €0.64

Quantity

€8,798.42
