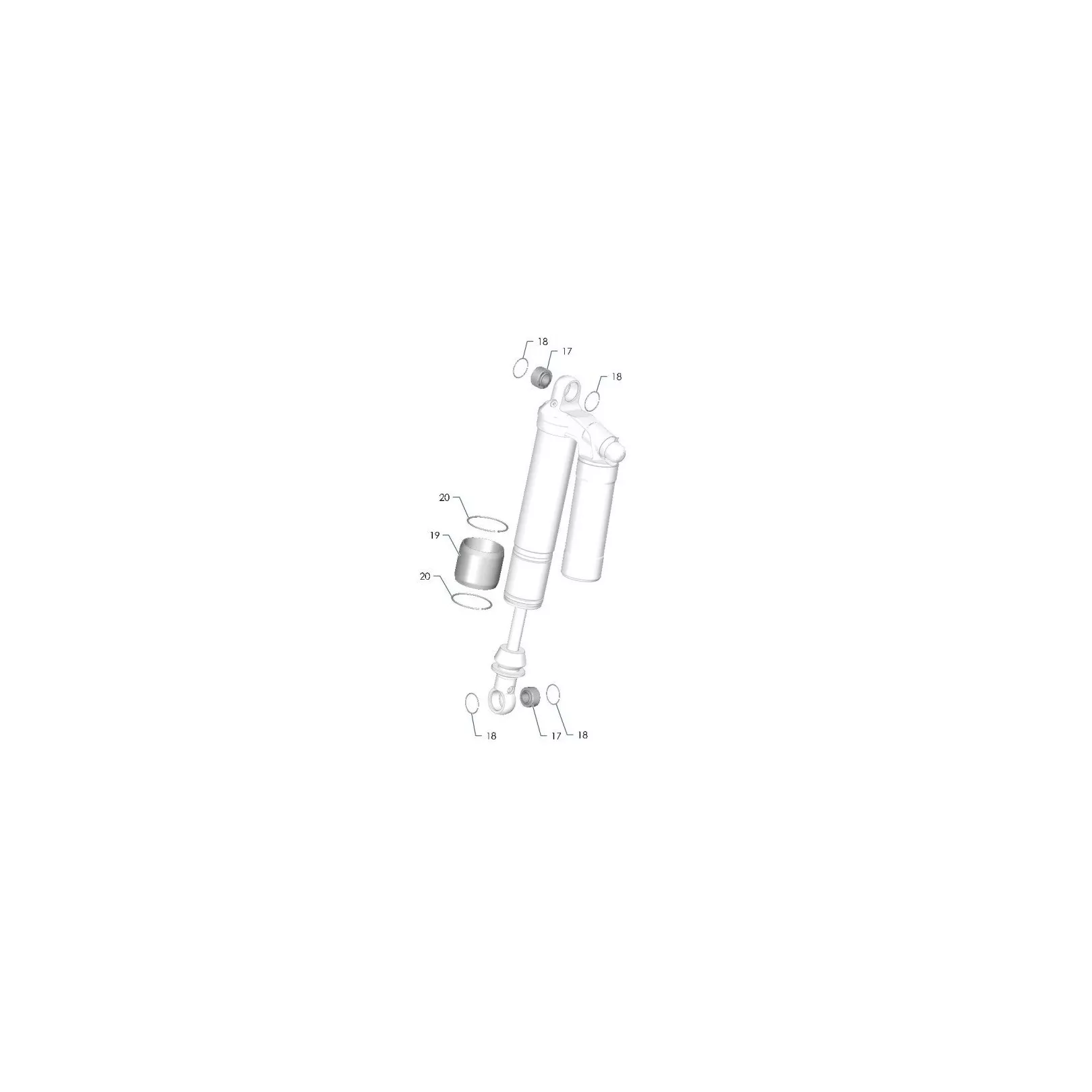

E25T Rear suspension Gravel

The full chapter is not available.

However, you can choose retail parts.

E25T Rear suspension Gravel

€4,566.96
Pack content
Ref Name Qty Price Number
  1 Rear gravel damper
1E2522151A		 2 €1,404.94

  2 Adjustable spring cup
1E2521148C		 2 €68.54

  3 Screw CHC M4x30 cl.10.9
CS530270ST		 2 €0.52

  4 SPS Washer Ø4,2x7-0,5
PS86597A10		 2 €0.15

  5 Rear helper spring 5 N/mm
1E2460499A		 2 €81.10

  6 Intermediate Spring Cup
1E2462065B		 2 €16.12

  7 Rear spring 36 N/mm
1E2521281A		 2 €102.93

  8 Rear Bottom Spring Cup
1E2563055B		 2 €41.73

  9 Screw HM12x175 L100 STEEL CL12.9
CS550063ST		 2 €10.82

  10 PLAIN WASHER Ø12X24-2,5
4010H4		 6 €0.54

  11 Rear damper spacer
1E2521149B		 8 €38.26

  12 O-ring A18.6 T3.5
CS360019ST		 8 €1.17

  13 COLLAR NUT M12
693977		 2 €1.92

  14 Bottom damper screw
1E2563675B		 2 €15.28

  15 Rear Spring 40.5N.mm (Tarmac)
1E2521280A		 2 €120.12

  16 Rear Spring 32N.mm (Gravel)
1E2521282A		 2 €131.34

  17 Rotule
00536-13		 4 €44.34

  18 Circlip
00557-01		 8 €1.22

  19 Guide Ressort
01293-06		 2 €15.58

  20 Circlip (guide)
00329-03		 4 €9.67

€4,566.96
