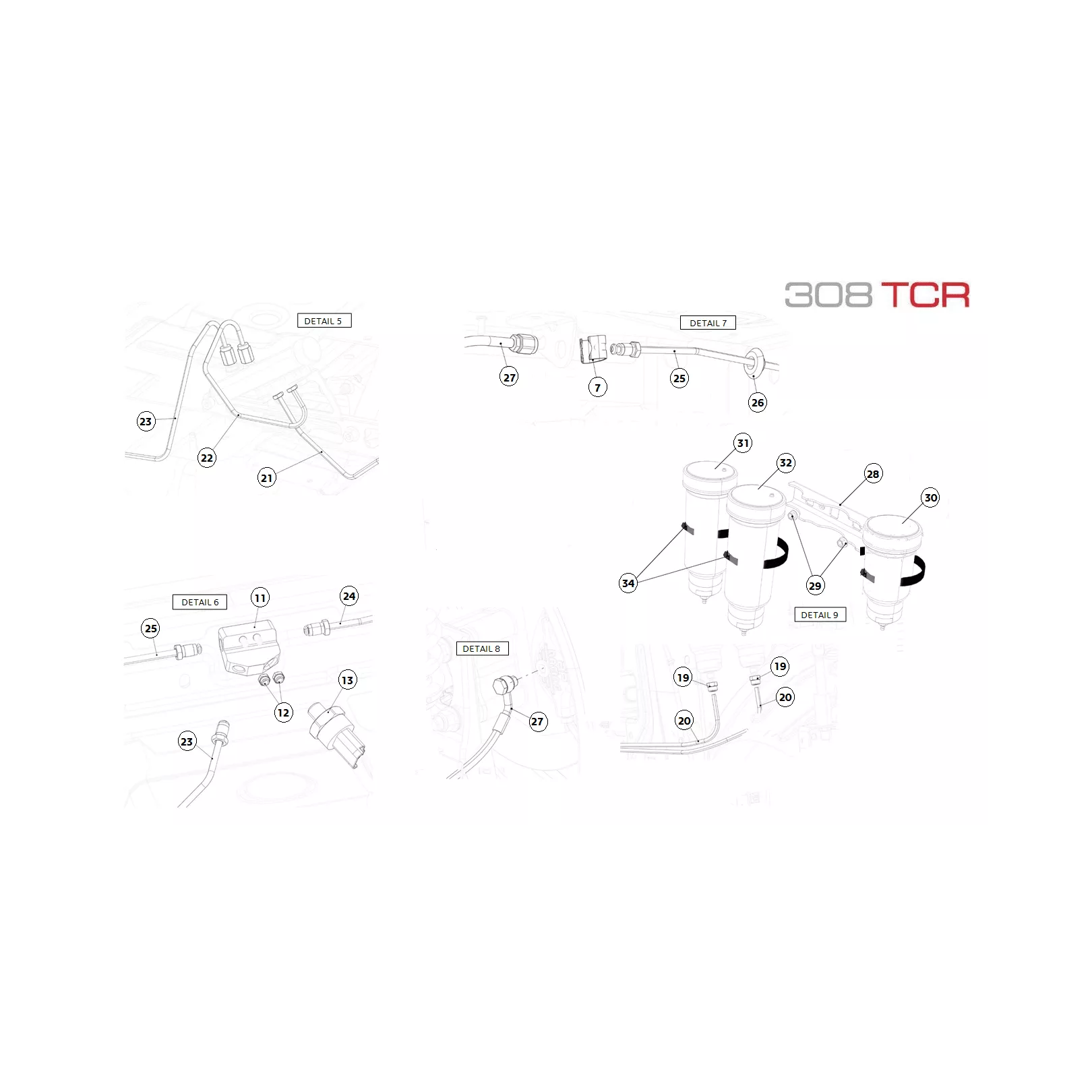

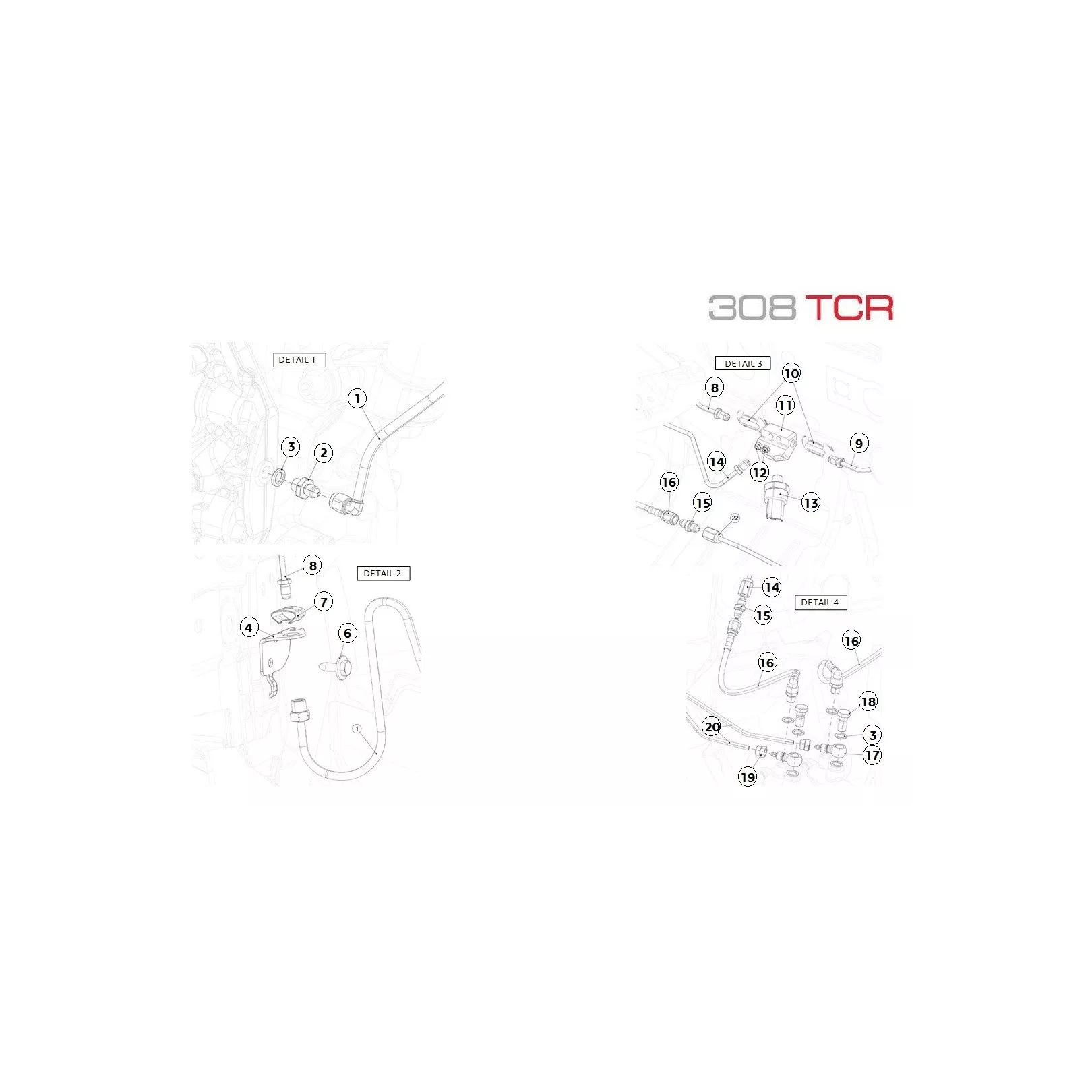

F63 Brake Circuit Assembly

  • Out of stock

The full chapter is not available.

However, you can choose retail parts.

F63 Brake Circuit Assembly

€3,490.36
  • Out of stock
Pack content
Ref Name Qty Price Number
  1 Front Brake Pipe
904433098A		 2 €68.23

  2 M10x100 - Dash 3 M/M Coupling
PS73248A10		 2 €5.84

  3 Copper Seal d10.35 D15,8 Th1
PS81535A10		 8 €1.86

  4 Front Left Flexible Brake Pipe
9800218780		 1 €3.37

  5 Front Right Flexible Brake Pipe
9800218580		 1 €3.37

  6 Screw M8-25
9023YG		 2 €3.24

  7 Brake Pipe Jumper
4814Z9		 4 €1.05

  8 Front Left Rigid Brake Pipe
904605658B		 1 €61.23

  9 Front Right Rigid Brake Pipe
904605648B		 1 €61.23

  10 Plug 20x50
7518H2		 2 €3.54

  11 4 Way Coupling
1F6363454A		 2 €52.27

  12 Locking Nut M5x5.4x8
693673		 4 €0.44

  13 HYDRAULIC PRESSURE SENSOR
5273A2		 2 €177.58

  14 Pedal to Front 3Way Connect Rigid Pipe
904605988B		 1 €38.65

  15 M DASH 3 JIC/JIC Coupling
PS73027A10		 2 €7.08

  16 Front brake master cylinder/support hose
1G1124215A		 2 €351.46

  17 Master Cylinder Banjo Coupling
1F6363865A		 2 €46.66

  18 Master Cylinder Banjo Coupling Screw
1F6363866A		 2 €45.22

  19 Feeding Hose Nut
1G3262584A		 2 €11.01

  20 Master Cylinder Feeding Hose
1G3262602A		 2 €17.55

  21 FRONT-TE-LIMIT- Brake Pipe
904605668A		 1 €65.58

  22 Pedal to Limitor Rigid Brake Pipe
904605678B		 1 €43.29

  23 Limiter to Rear 3Way Connect Rigid Pipe
904605688B		 1 €54.50

  24 Rear Left Rigid Brake Pipe
904428378B		 1 €61.93

  25 Rear Right Rigid Brake Pipe
904428368B		 1 €61.96

  26 Plug D14
646272		 4 €1.41

  27 Rear Brake Flexible Hose
904601948A		 2 €161.67

  28 Reservoir Mount
904494298A		 1 €141.36

  29 Nut With Washer M6X100
PS74006A10		 2 €11.02

  30 Short reservoir
1G3262850A		 1 €131.08

  31 Tall Reservoir
904612128A		 1 €59.52

  32 Medium reservoir
1F6362849A		 1 €86.32

  33 Reservoir boot
1F6362743A		 2 €48.01

  34 V-BAND CLAMP D32-52
PS91627A10		 3 €2.94

  35 RING BRASS M10X1
904679998A		 1 €48.58

  36 Clutch Master Cylinder Feeding Pipe
904604478B		 1 €142.44

  37 COUPLEUR FREIN DASH3 FEMELLE
ST04100073		 1 €233.24

  38 Adaptator M10x1/dash3 M/M
PS73035A10		 1 €29.11

  39 Brake Fluid Brembo HTC64T (0,5 l)
PS97633A10		 3 €35.76

€3,490.36
