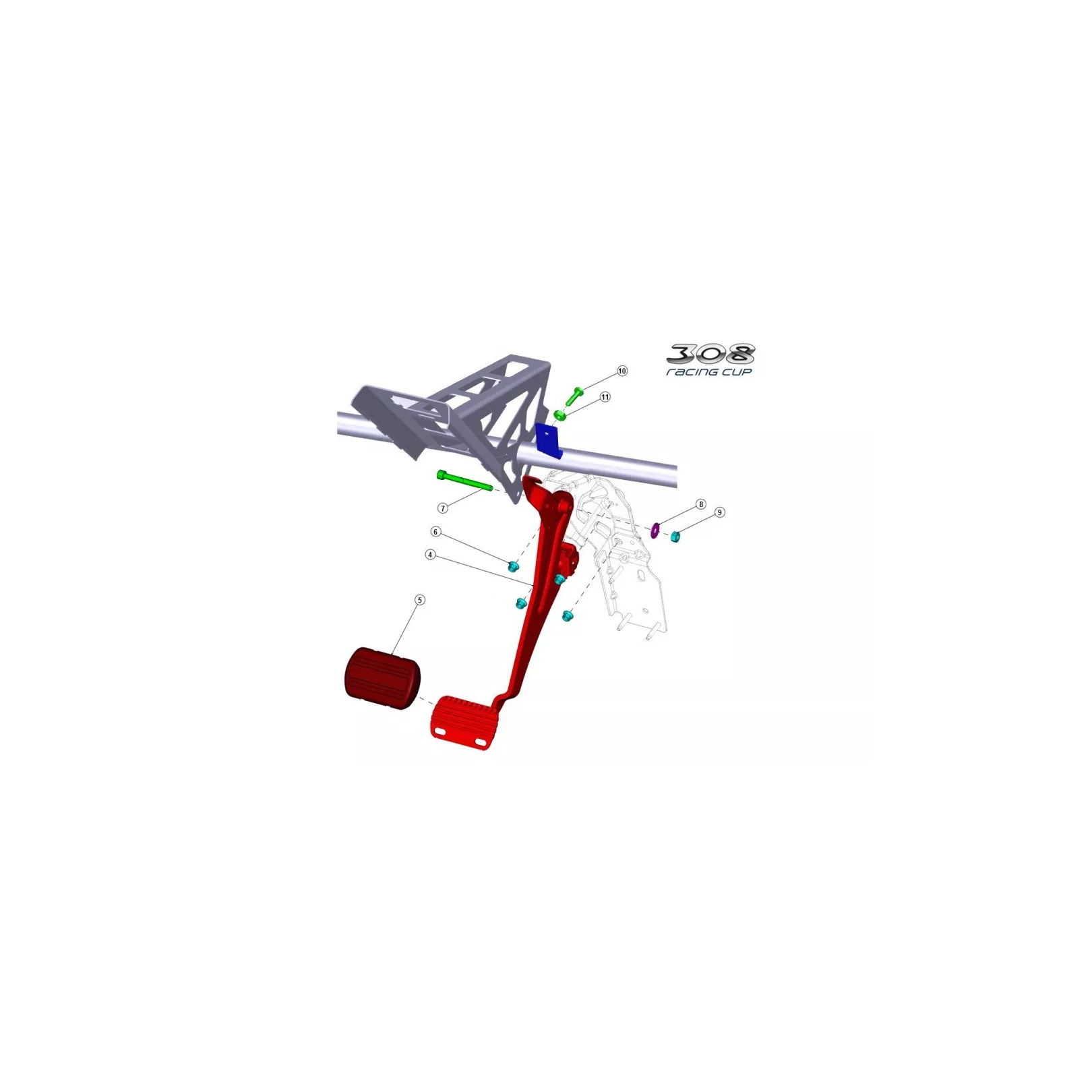

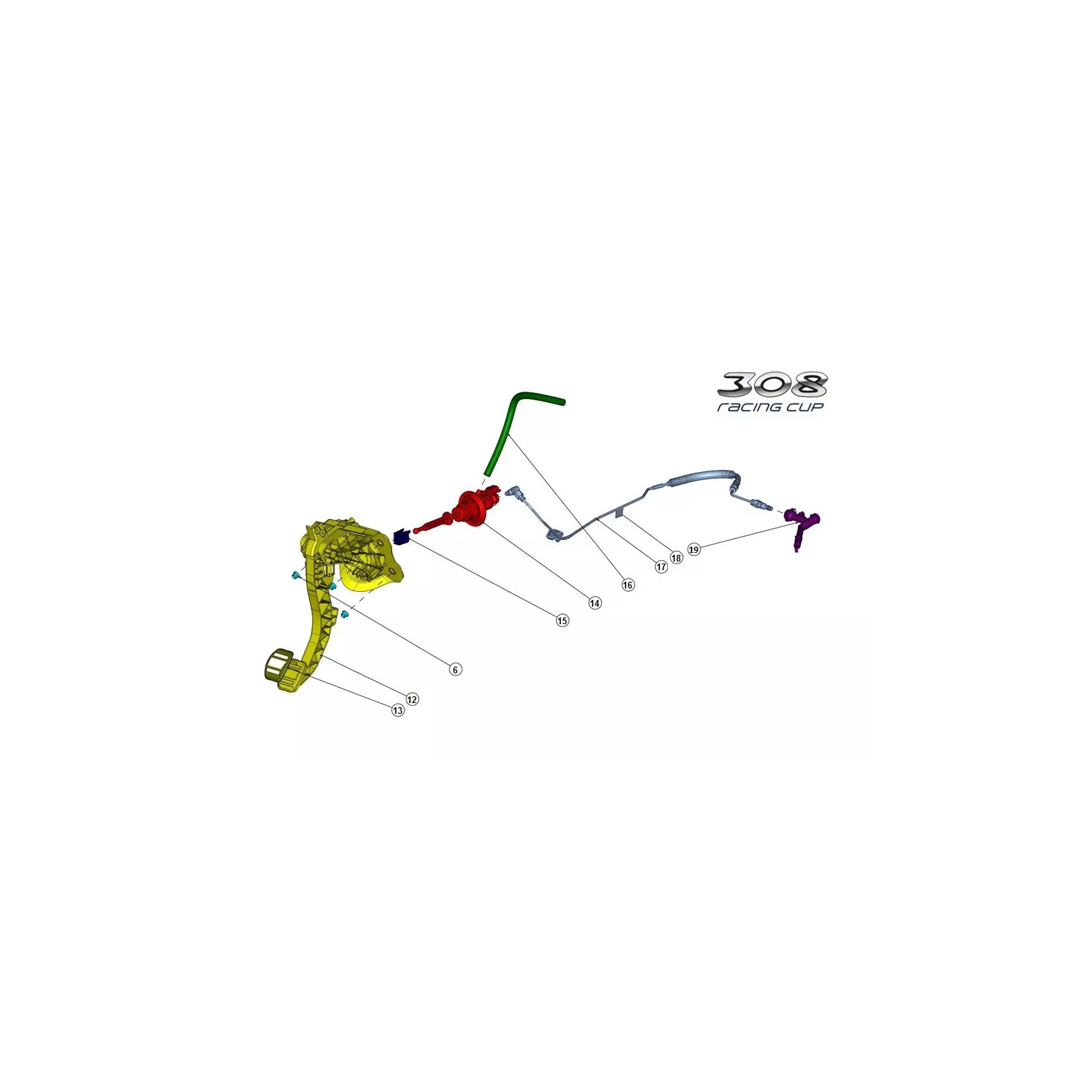

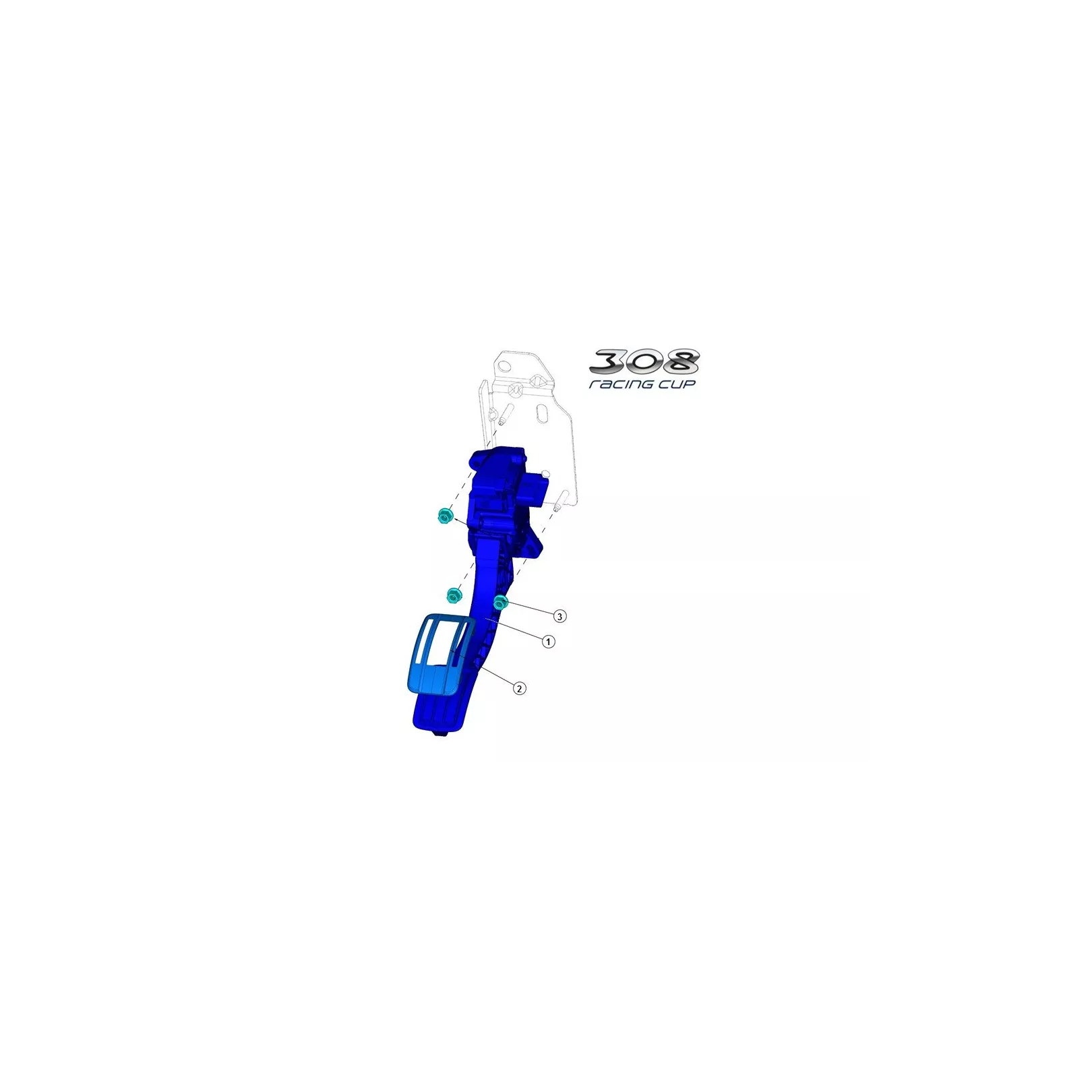

G11 - Pedal assembly

The full chapter is not available.

However, you can choose retail parts.

G11 - Pedal assembly

€1,146.20
Pack content
Ref Name Qty Price Number
  1 Throttle pedal
9674828980
1 €276.49

  2 Throttle pedal cover
9675831080
1 €21.58

  3 Collar Nut M6x100
6936-62
3 €1.09

  4 Brake Pedal
9673960880
1 €198.48

  5 Désignation de l'article
9824805180
1 €28.52

  6 Collar Nut M8x125
450333
7 €1.36

  7 Screw M8-75
PS82669A10
1 €0.85

  8 Washer 8x22-1.5
694706
1 €0.27

  9 Self Locking Nut M8
6936-75
1 €0.54

  10 Screw M5-25
9641213780
1 €1.47

  11 M5 Nut
PS74662A10
1 €0.52

  12 Clutch Pedal
9801036280
1 €151.32

  13 SERRURE PORTE G
9826126080
1 €177.12

  14 Clutch Master cylinder
9674259580
1 €174.42

  15 Sender Balljoint Fastener
9820342980
1 €13.88

  16 Master cylinder feeding pipe
215630
1 €5.44

  17 Clutch high pressure pipe
9808238480
1 €41.12

  18 STRAP CLIP L140 B5 BOUT PLAS LVE
1611982880
1 €0.38

  19 Bleeding coupling
9806955380
1 €40.89

€1,146.20
