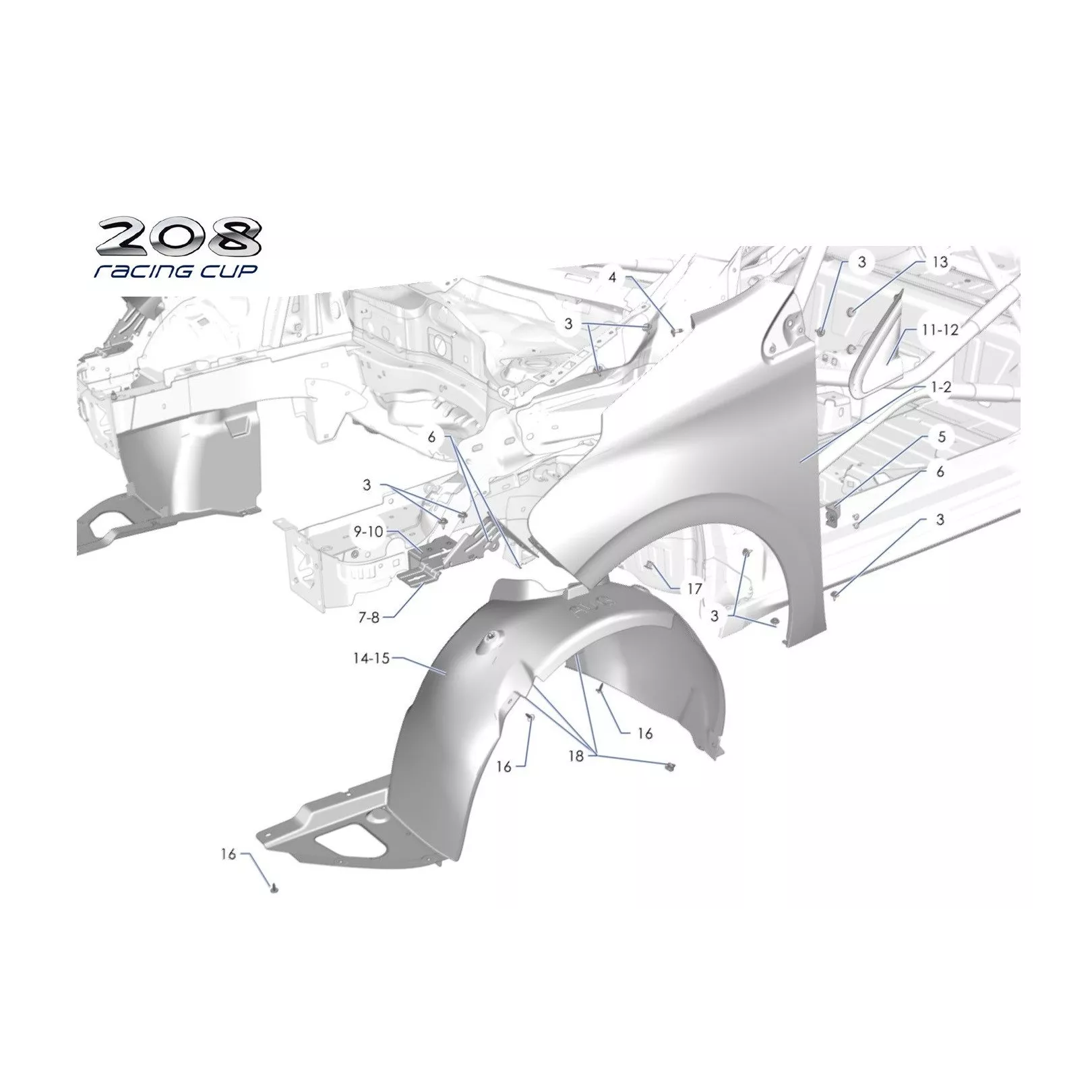

K3C Front wings

The full chapter is not available.

However, you can choose retail parts.

K3C Front wings

€847.47
Pack content
Ref Name Qty Price Number
  1 Front left wing
9672994980
1 €161.25

  2 Front right wing
9672971480
1 €178.54

  3 SELF LOCKING SELF-TAP SCREWS M6x16
6923H0
16 €2.19

  4 SCREW M6x20
7221-49
2 €2.24

  5 SUPPORT RR LWR WING FRT
9677273180
2 €13.96

  6 RIVET STD Ø6,4x12,5
697327
8 €1.69

  7 Support aile AV G
9802301280
1 €39.93

  8 Support aile AV D
9802294980
1 €39.93

  9 SUPPORT FRONT WING
7840Y2
1 €39.93

  10 SUPPORT FRONT WING
7840Y1
1 €39.93

  11 Bonnet prop
9673280880
1 €54.56

  12 Bonnet prop
9673280280
1 €54.56

  13 HOG RING
9025W0
4 €0.14

  14 Bonnet prop
9673768880
1 €58.95

  15 Bonnet prop
9673768780
1 €90.32

  16 SCREW CBLX RDL Ø4,5x21
6925N0
6 €0.74

  17 FIXING CLIP
7136A5
2 €0.68

  18 RIVET 8 D20 E2 E7,5 PLAS
1622749580
8 €0.25

€847.47
