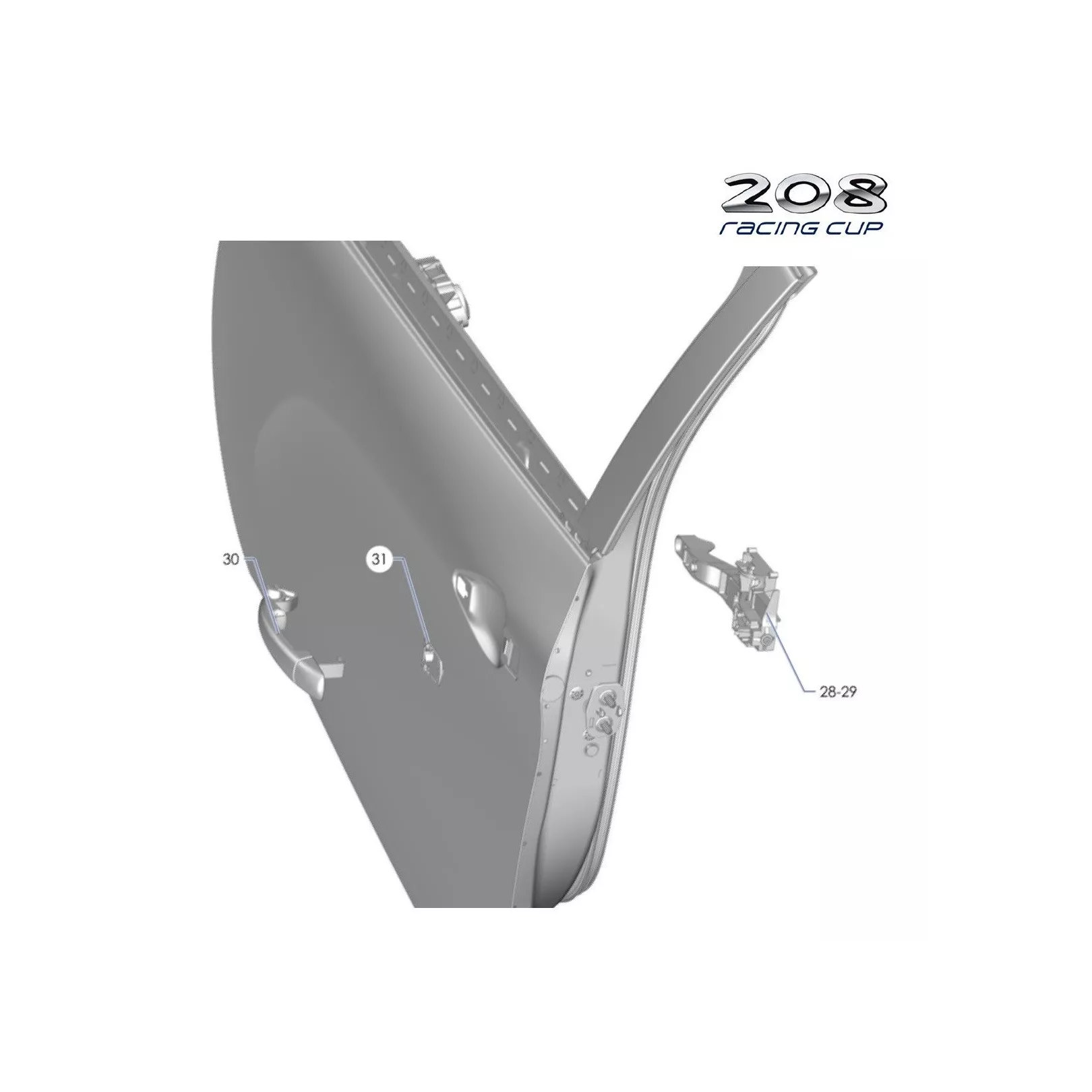

K7A Front doors

The full chapter is not available.

However, you can choose retail parts.

K7A Front doors

€2,181.73
Pack content
Ref Name Qty Price Number
  1 Front left door
9805822580
1 €577.11

  2 Ne fournissons plus
NFP-01
1 €0.03

  3 Plug towball
9673480280
2 €107.53

  4 BUFFER
7908V2
2 €6.60

  5 Plug D20-3-10
6988-58
2 €1.48

  6 Left door lock
9812500480
1 €148.83

  7 Right door lock
9812500380
1 €148.83

  8 Screw
9677354780
4 €0.25

  9 HINGED DOOR OPENING INT CTRL
9143T8
1 €58.18

  10 HINGED DOOR OPENING INT CTRL
9144G4
1 €51.91

  11 Screw CBLX DIAM 4-15
6924E4
2 €0.69

  12 Lock striker
9676198880
2 €30.31

  13 VIS TF
690758
4 €2.24

  14 Left window trim
96743413XT
1 €79.60

  15 Rigth window trim
96743412XT
1 €83.80

  16 Rivet
6974A5
6 €3.22

  17 Left door upper hinge
9671886980
1 €67.18

  18 Right door upper hinge
9671886880
1 €67.18

  19 Left door lower hinge
9671887180
1 €63.91

  20 Right door lower hinge
9671887080
1 €67.10

  21 SCREW RLX M8x26
6924F5
4 €1.21

  22 SCREW % H RC22 M8X125 L30 AC10 ZLVMGL FP
9674550680
8 €2.35

  23 DOOR STOP
9181Q8
2 €55.86

  24 SCREW CBLX RDL M8x40
6913N9
2 €2.14

  25 COLLAR NUT M6
1611567380
2 €1.16

  26 HINGE AXIS
9673328180
4 €2.82

  27 RETAINING CLIP
9044-44
4 €0.22

  28 DOOR HANDLE HOLDER
9109-58
1 €67.29

  29 DOOR HANDLE HOLDER
9109-59
1 €67.29

  30 DOOR HANDLE
9101GH
2 €53.25

  31 HANDLE BASE
9101EK
2 €2.24

  32 (MUL) PLUG Ø30mm
7467Y0
10 €4.56

€2,181.73
