K7G REAR DOOR

The full chapter is not available.

However, you can choose retail parts.

K7G REAR DOOR

€3,343.24
Pack content

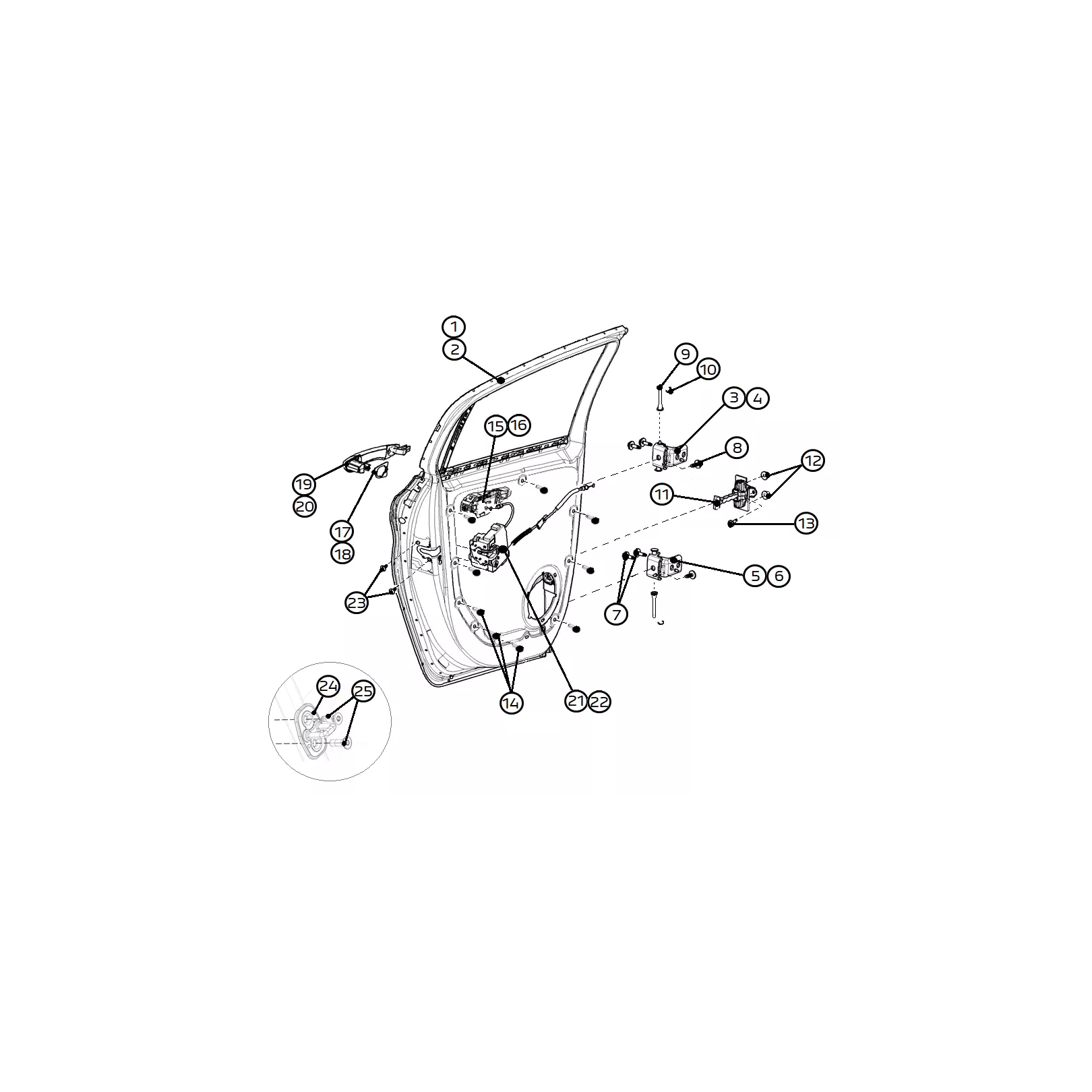

Ref Name Qty Price Number
  1 RIGHT REAR DOOR
9827578080
1 €538.47

  2 LEFT REAR DOOR
9827577980
1 €538.47

  3 Blind rivet nut M6x100
CS240008ST
16 €0.82

  4 RIGHT DOOR HANDLE HOLDER
9802977180
1 €49.21

  5 LEFT DOOR HANDLE HOLDER
9802977380
1 €46.86

  6 RIGHT HANDLE BASE
9802977680
1 €2.25

  7 LEFT HANDLE BASE
9802977780
1 €2.14

  8 FRONT RIGHT HANDLE
98029782XT
2 €54.81

  9 Front Left Handle
98029783XT
2 €54.81

  10 RIGHT REAR DOOR LOCK
9829285280
1 €167.10

  11 LEFT REAR DOOR LOCK
9829285480
1 €182.29

  12 SCREW M8x125
9677682180
4 €0.55

  13 Rear Right Door Trim
98232310XY
1 €60.99

  14 Rear Left Door Trim
98232314XY
1 €60.99

  15 Blind Rivet 4.8 L10
PS92659A10
6 €0.20

  16 SLIDE RIGHT REAR DOOR WINDOW
9823226380
1 €134.90

  17 SLIDE LEFT REAR DOOR WINDOW
9823226480
1 €134.90

  18 WEATHERSTRIP EXT RIGHT REAR DOOR WINDOW
9823195680
1 €48.43

  19 WEATHERSTRIP EXT LEFT REAR DOOR WINDOW
9823195880
1 €48.43

  20 WEATHERSTRIP INT RIGHT REAR DOOR WINDOW
9823196580
1 €27.69

  21 WEATHERSTRIP INT LEFT REAR DOOR WINDOW
9823196780
1 €27.69

  22 Rear Right Door window Trim
98232340XT
1 €33.88

  23 Rear Left Door Window Trim
98232341XT
1 €33.88

  24 GASKET INF RIGHT REAR DOOR
9823194780
1 €55.34

  25 GASKET INF LEFT REAR DOOR
9823194980
1 €55.34

  26 REAR DOOR STOP
9823210680
2 €49.71

  27 COLLAR NUT M6
1611567380
4 €1.20

  28 HEX SCREW M8
9678268380
2 €2.58

  29 REAR RIGHT DOOR PANNEL
904681938A
1 €79.29

  30 REAR LEFT DOOR PANNEL
904681948A
1 €79.29

  31 Screw ULF M6-16
PS82639A10
16 €0.52

  32 Right door upper hinge
9671886880
1 €69.14

  33 Left door upper hinge
9671886980
1 €69.14

  34 Right door lower hinge
9671887080
1 €69.06

  35 Left door lower hinge
9671887180
1 €65.78

  36 HINGE AXIS
9673328180
4 €2.90

  37 RETAINING CLIP
9044-44
4 €0.22

  38 SCREW RLX M8x26
6924F5
4 €1.24

  39 SCREW % H RC22 M8X125 L30 AC10 ZLVMGL FP
9674550680
8 €2.41

  40 Stricker
916468
2 €24.42

  41 SCREW FX M8x125 L25 AC8 ZNIDA3L FP
9678660980
4 €0.34

  42 GASKET INCOMING RIGHT REAR DOOR
9823214780
2 €110.67

€3,343.24
