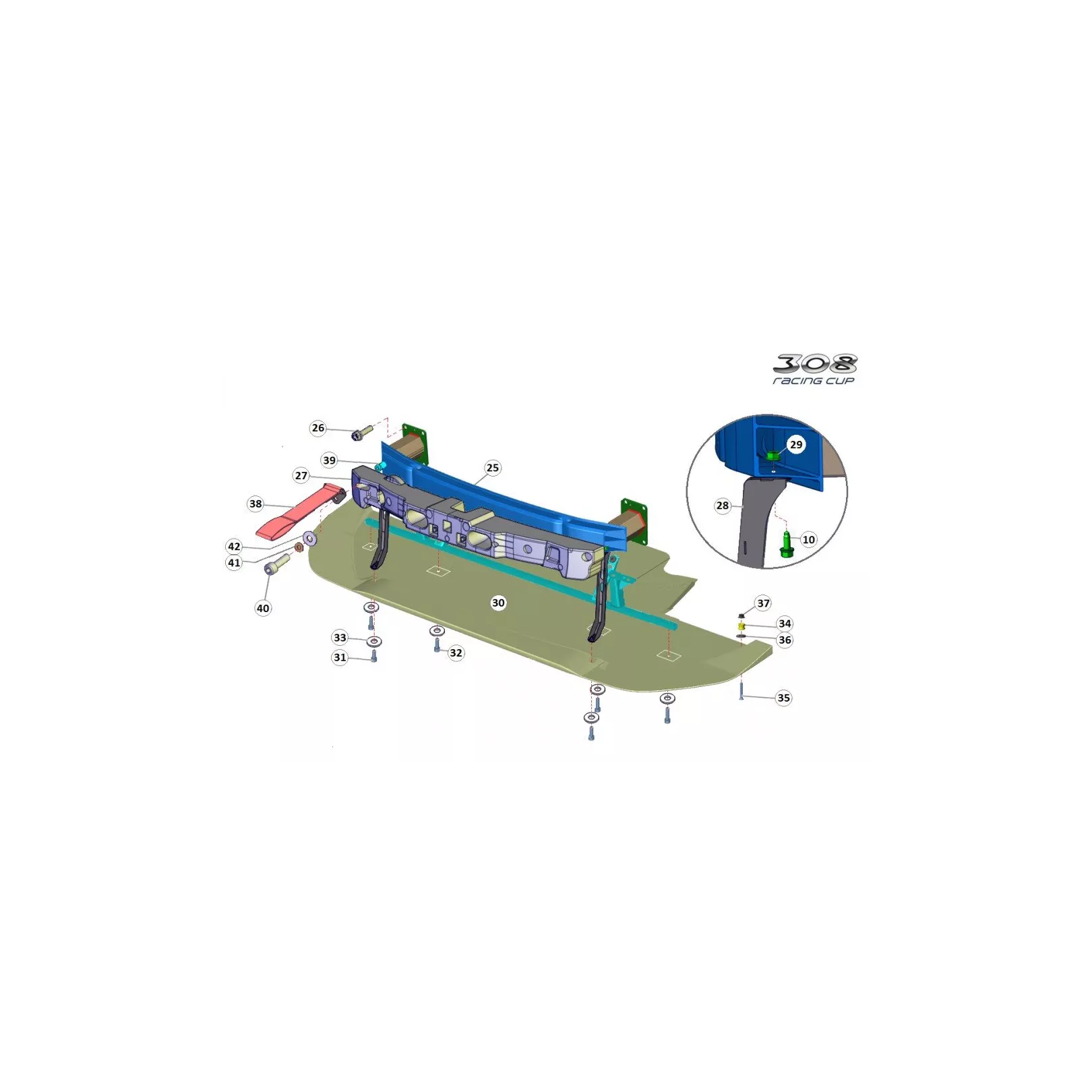

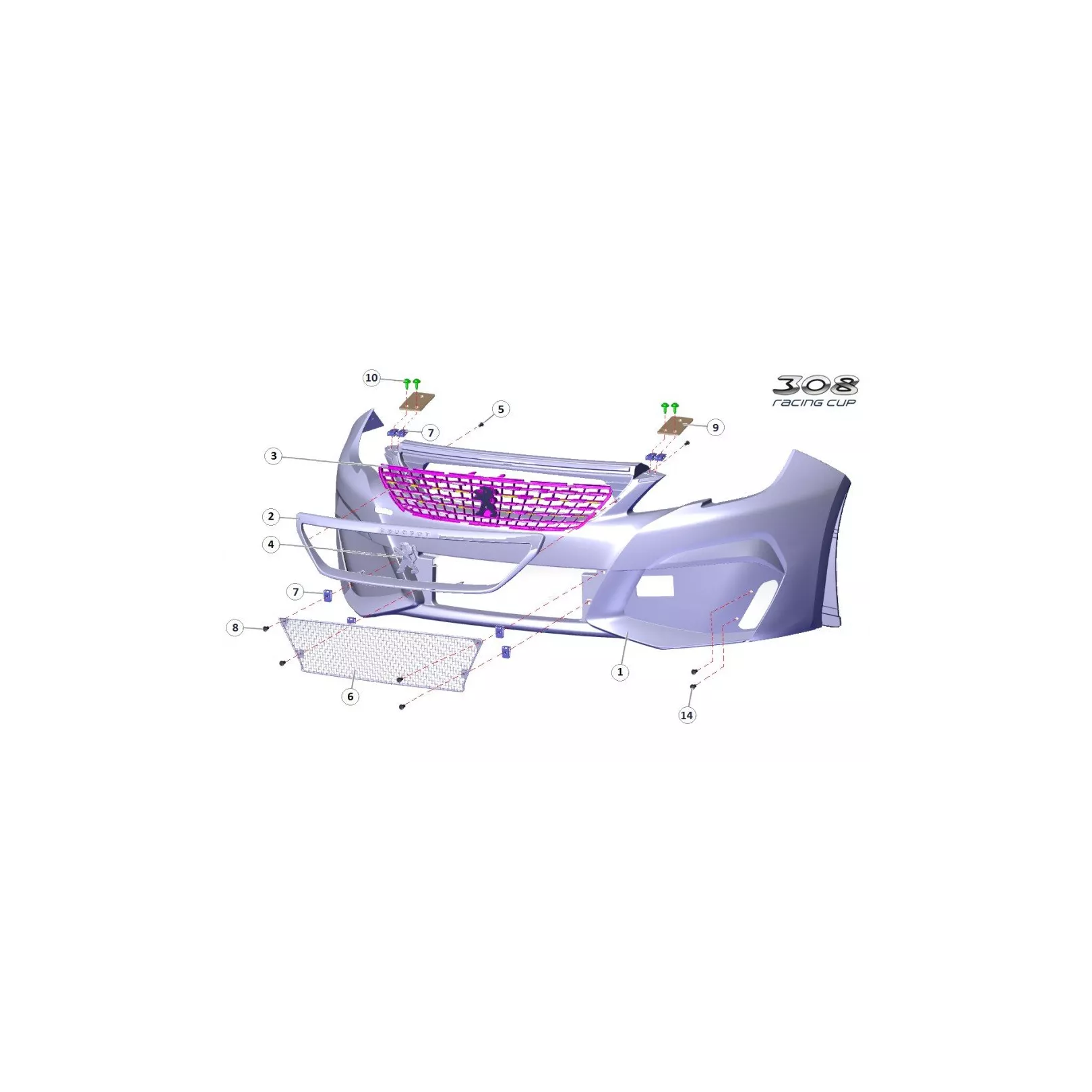

R1A - Front bumper

The full chapter is not available.

However, you can choose retail parts.

R1A - Front bumper

€4,648.46
Pack content
Ref Name Qty Price Number
  1 FRONT BUMPER 2018
904486188E
1 €1,270.08

  2 Radiator Grille Bracket
1627679780
1 €161.01

  3 Radiator Grille Moulding
1627679580
1 €182.95

  4 Désignation de l'article
98153730DX
1 €30.08

  5 SCREW CBLX RPL MTEND 4,5 L20 AC ZNIDN3L
9683420780
2 €2.00

  6 Front Bumper Lower Grille
904602138A
1 €495.60

  7 Nut 6x100
6943-83
12 €1.36

  8 Screw M6-16
PS82690A10
4 €0.79

  9 Support fixation bouclier AR
3R1B25014C
2 €9.54

  10 Screw with washer M6x100-L18
692254
6 €2.23

  11 GRILLE FRONT BUMPER 2018
904617098A
1 €50.40

  12 Front Right Brake Duct Entry
904434768B
1 €39.01

  13 Front Left Brake Duct Entry
904434778B
1 €39.01

  14 STD 4,8x13 Rivet
6973-05
4 €0.76

  15 Washer 5x12
PS86045A10
4 €0.48

  16 Front Left & right Wheelarch Downforce
904428308B
2 €8.40

  17 Rivet
PS92542A10
12 €0.50

  18 Flat washer Ø4x10-0,8
6946-52
12 €0.14

  19 Bumper Locator
3R1A22248A
2 €18.98

  20 Socket Screw M6-20
PS82001A01
4 €0.21

  21 Bumper Locator Mounting Bracket
3R1B25877B
2 €6.50

  22 SELF LOCKING SELF-TAP SCREWS M6x30
623006
4 €2.28

  23 Slide latch
PS78573A10
2 €5.32

  24 TP 3,2x8 Rivet
PS92627A10
4 €0.07

  25 Bumper Absorber
9677378580
1 €204.79

  26 SCREW % H RC22 M8X125 L30 AC10 ZLVMGL FP
9674550680
8 €2.35

  27 ABSORBEUR P-CH
9814764980
1 €66.10

  28 Front Splitter Mounting Tie Rod
904417978C
2 €304.41

  29 NUT WITH BASE M6
6935A6
2 €1.16

  30 Front Splitter
904434788D
1 €1,236.48

  31 Socket Screw M6-25
PS82017A10
2 €0.31

  32 Socket Screw M6-35 12.9
PS82038A10
4 €0.42

  33 Washer 6x22-1.5
694737
6 €0.97

  34 Bush
PS78574A10
2 €1.70

  35 VIS FHC M4X070 L30
CS540019ST
2 €0.87

  36 Washer Ø4x16x1
PS86043A10
4 €3.32

  37 Nut nylstop M4 - type P - SI161M04P8
PS74023A10
4 €0.37

  38 Towing Straps
01612RS
1 €22.95

  39 Front Towing Ring Screw
904440678A
1 €31.75

  40 Socket Screw M12-40
PS82067A10
1 €0.76

  41 Onduflex Washer D12
PS86006A10
1 €0.69

  42 PLAIN WASHER Ø12x27-2,5
6949-44
1 €1.16

€4,648.46
