T4A FUEL TANK

  • Out of stock

The full chapter is not available.

However, you can choose retail parts.

T4A FUEL TANK

€8,097.06
  • Out of stock
Pack content

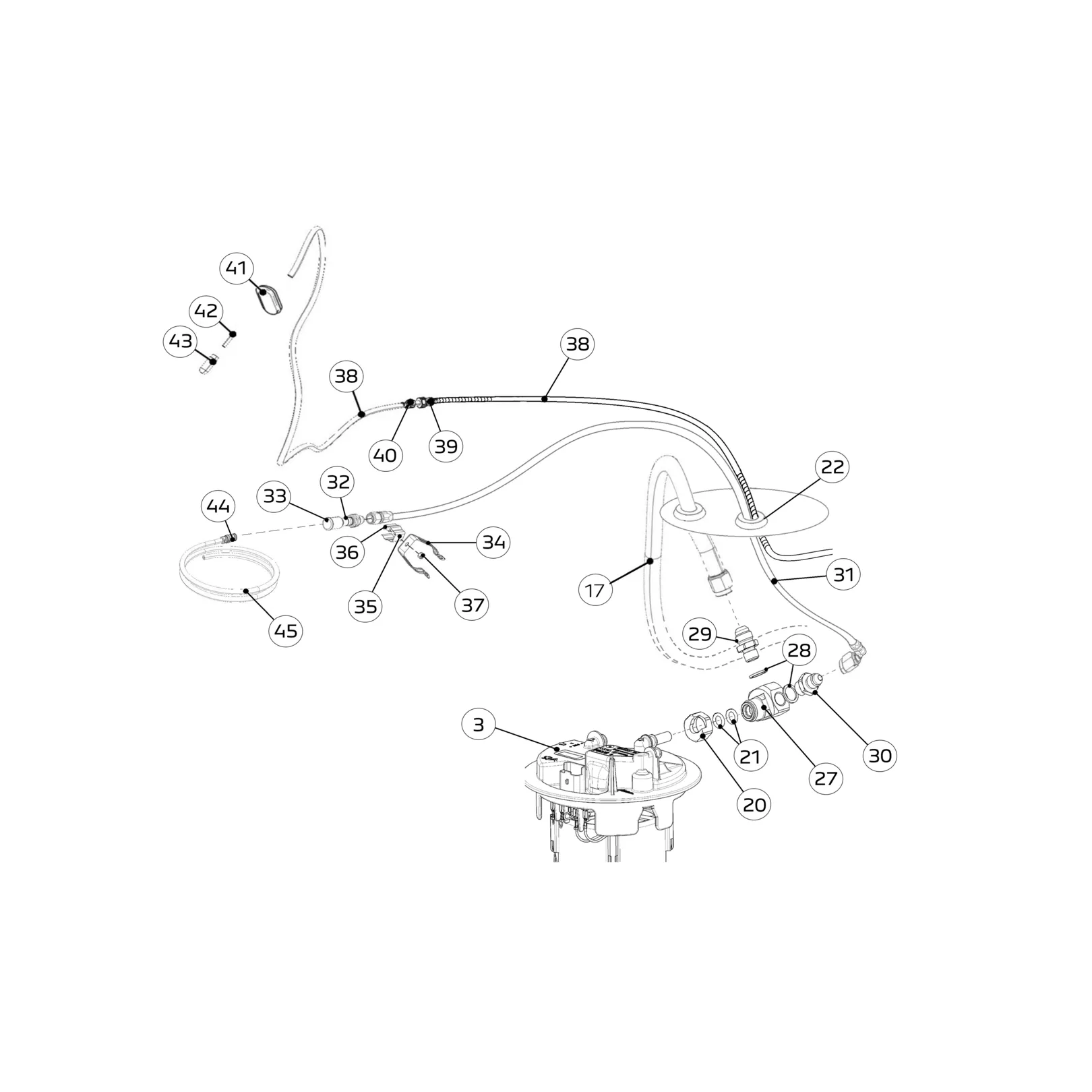

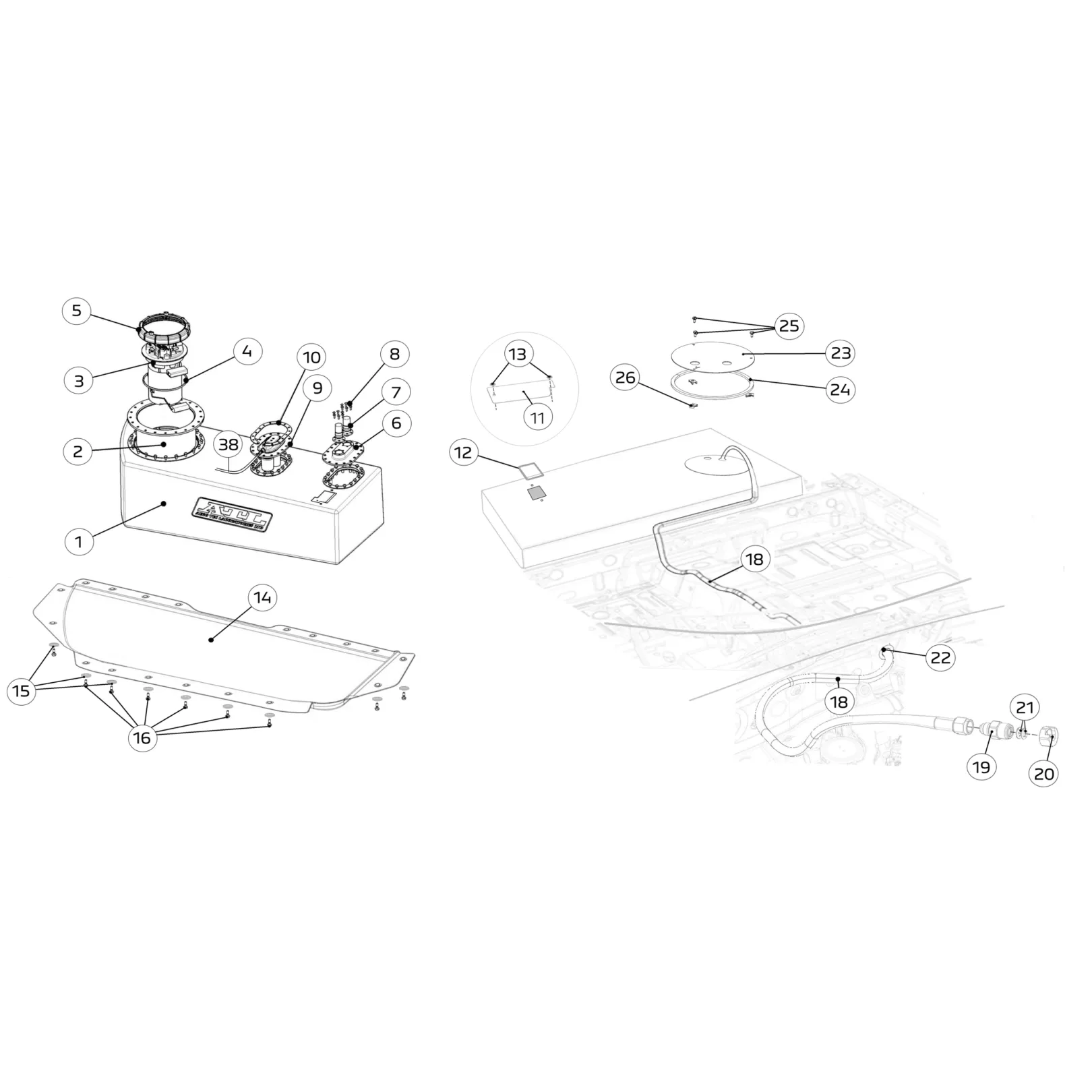

Ref Name Qty Price Number
  1 FUEL TANK
904659228B		 1 €2,522.40

  2 FUEL TANK COVER PLATE
904659788D		 1 €365.94

  3 JOINT ATL GA-CC-897
GA-CC-897		 1 €189.60

  4 Gauge with pump
9674466980		 1 €475.95

  5 FUEL TANK SEAL
1531-41		 1 €8.91

  6 RING
153150		 1 €17.60

  7 SPT12 PLATE
904659798A		 1 €168.61

  8 Quick coupling STP12-N00916298
PS73368A10		 2 €259.48

  9 QUICK PLUG SPT12 NO THREAD JKV
ST04100244		 2 €552.69

  10 M4 Screw 4x12
PS82653A10		 12 €0.80

  11 Rollover valve
3T4A23733A		 1 €208.54

  12 JOINT ATL GA-CC-898
GA-CC-898		 1 €69.21

  13 Rollover valve support
3T4A23734B		 1 €39.33

  14 FIA TRAPDOOR
904661338A		 1 €17.44

  15 FOAM L350 mm
904696338A		 1 €3.99

  16 Collar Nut M5
6936-67		 2 €1.57

  17 FUEL TANK PROTECTION
904659888E		 1 €1,062.93

  18 Collar Screw M6-16
6925W6		 18 €3.01

  19 Flat washer Ø6x22-1,5 Zingué
PS86050A10		 18 €6.88

  20 FUEL HOSE
904675928C		 1 €170.14

  21 STRAIGHT FUEL ADAPTATOR
904673288B		 1 €50.96

  22 O-ring Ø8x2,5 FPM 80Sh
CS360296ST		 4 €0.85

  23 FUEL ADAPTATOR NUT
904673268B		 2 €26.88

  24 GROMMET
698778		 3 €3.09

  25 MJP PLATE
904675058A		 1 €15.42

  26 FOAM L650 mm
904696328A		 1 €5.60

  27 Collar Screw
9805761480		 3 €1.09

  28 Nut 5x80
694379		 3 €4.35

  29 MJP FUEL ADAPTATOR
904675788A		 1 €72.50

  30 Copper washer D12.2x15.9x1.5 DIN 7603
PS81613A10		 2 €1.35

  31 Coupling M/M 12X1.5-9/16-18ALU
ST04100097		 1 €18.30

  32 Coupling M/M 12X1.5-7/16-20
ST04100098		 1 €23.62

  33 FUEL SAMPLING HOSE
904676768A		 1 €113.47

  34 Coupling SPT05 JKV dash4
PS73274A10		 1 €196.63

  35 SPT05 Plug
ST00900016		 1 €11.42

  36 Metal Clamp17-20
PS91015A10		 1 €2.64

  37 BHC SCREW M4X070 L8 CL12.9
PS82651A10		 1 €0.69

  38 Metal Clamp 43-50
ST00100009		 1 €7.56

  39 LOCK NUT HM M4X070 STEEL
ST02500009		 1 €0.04

  40 PIPE L3000mm BLACK ST08300024
904696198A		 1 €130.36

  41 D10 Straight Coupling
PS73411A10		 1 €10.62

  42 Male connector Ø10
PS73408A10		 1 €10.62

  43 Grommet D29
DC7012274		 1 €0.68

  44 Filter Mounting Hose L30mm
904680808A		 1 €0.03

  45 Fuel tank disgassing filter
3T4A64747A		 1 €9.26

  46 Coupling SPT05 JV
PS73195A10		 1 €168.00

  47 Fuel Sample Outlet Hose
904678478A		 1 €27.04

€8,097.06
